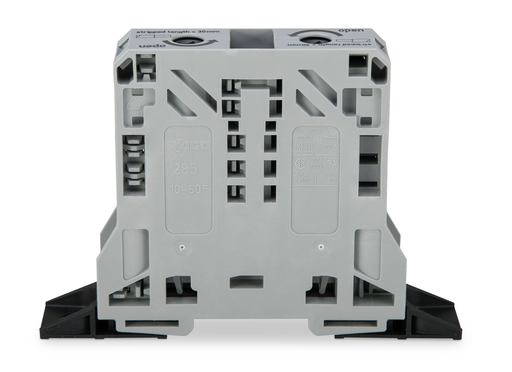

WAGO 285141 2-conductor Through Terminal Block
The WAGO 285-141 is a 2-conductor through terminal block engineered for robust and efficient electrical connections in industrial applications. Its POWER CAGE CLAMP technology ensures a secure and vibration-resistant connection for conductors ranging from 10 to 70 mm². The block’s horizontal design and mounting flange facilitate easy integration into DIN rail systems. With a rated voltage of 1000V and a current carrying capacity of 150A, this terminal block is suitable for demanding power distribution and control circuits. Lateral marker slots allow for clear identification, enhancing maintainability and reducing errors. Constructed from durable polyamide 66, the 285-141 offers excellent insulation and fire resistance, contributing to overall system safety and reliability.
WAGO 285141 2-conductor Through Terminal Block Specifications:
- Rated voltage (III / 3): 1000 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 150 A
- Connection technology: POWER CAGE CLAMP
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 10 … 50 mm² / 8 … 1/0 AWG
- Fine-stranded conductor: 10 … 70 mm² / 8 … 2/0 AWG
- Strip length: 30 mm / 1.18 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Width: 20 mm / 0.787 inch
- Height: 94 mm / 3.7 inch
- Height from the surface: 94 mm / 3.7 inch
- Depth: 130 mm / 5.118 inch
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0 MJ
- Weight: 165.07 g
- Country of origin: PL
- GTIN: 4055143608244
- Customs Tariff No.: 85369010000
