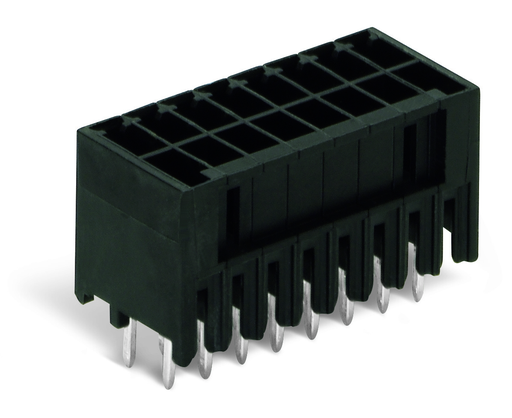

WAGO 7131407 14-pole Male Header
The WAGO 713-1407 is a robust and reliable 14-pole male header designed for secure and efficient connections in a variety of industrial applications. Its 0.8x0.8mm solder pins and 3.5mm pin spacing ensure compatibility with standard PCB layouts. The header's straight design and 100% mismating protection contribute to reliable performance and ease of assembly. Constructed from polyphthalamide (PPA GF), it offers excellent insulation and flame retardancy (UL94 V0). It is suitable for use in control cabinets, automation systems, and other electrical equipment where secure and reliable connections are essential.
WAGO 7131407 14-pole Male Header Specifications:
- Pin Spacing: 3.5 mm
- Number of Poles: 14
- Solder Pin Length: 3.8 mm
- Solder Pin Dimensions: 0.8 x 0.8 mm
- Width: 26 mm
- Height: 17.3 mm
- Height from Surface: 13.5 mm
- Depth: 13.3 mm
- Drilled Hole Diameter: 1.2 mm
- Nominal Voltage (III/3): 80 V
- Rated Surge Voltage (III/3): 2.5 kV
- Nominal Voltage (II/2): 250 V
- Rated Surge Voltage (II/2): 2.5 kV
- Rated Current: 10 A
- Rated Voltage UL (Use Group B): 150 V
- Rated Current UL (Use Group B): 10 A
- Rated Voltage CSA (Use Group B): 150 V
- Rated Current CSA (Use Group B): 12 A
- Total Number of Potentials: 14
- Number of Connection Types: 1
- Number of Levels: 2
- Material Group: I
- Insulation Material: Polyphthalamide (PPA GF)
- Flammability Class UL94: V0
- Contact Material: Electrolytic Copper (E Cu)
- Contact Plating: tin-plated
- Fire Load: 0.079 MJ
- Weight: 3.8 g
- Limit Temperature Range: -60 … +100 °C
- Packaging Type: BOX
- Country of Origin: PL
- GTIN: 4045454700027
- Customs Tariff Number: 85366990990
