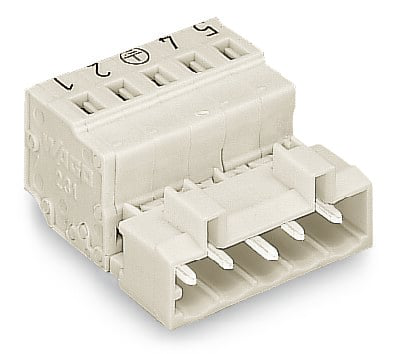

WAGO 721605000042 5-pole Male Connector
The WAGO 721-605/000-042 is a 5-pole male connector part of the MCS – MULTI CONNECTION SYSTEM. It offers easy cable pre-assembly and on-unit wiring via CAGE CLAMP actuation, making it suitable for a wide range of applications including wire-to-wire and board-to-wire connections. The connector's design includes 100% protection against mismating and a preceding ground contact. It is ideal for applications requiring secure and reliable connections in industrial environments.
WAGO 721605000042 5-pole Male Connector Specifications:
- conductor_type: 1-conductor
- mismating_protection: 100% protected against mismating
- ground_contact: preceding ground contact
- marking: direct marking
- conductor_size: 2.5 mm²
- pin_spacing: 5 mm
- number_of_poles: 5-pole
- color: light gray
- actuation_type: Operating tool
- solid_conductor_size: 0.08 … 2.5 mm² / 28 … 12 AWG
- fine_stranded_conductor_size: 0.08 … 2.5 mm² / 28 … 12 AWG
- ferrule_size: 0.25 … 1.5 mm² (insulated), 0.25 … 2.5 mm² (uninsulated)
- strip_length: 8 … 9 mm / 0.31 … 0.35 inch
- total_connection_points: 5
- total_potentials: 5
- levels: 1
- ground_function: with preceding ground contact
- conductor_entry_direction: 0 °
- nominal_voltage_iii3: 320 V
- rated_surge_voltage_iii3: 4 kV
- rated_voltage_iii2: 320 V
- rated_surge_voltage_iii2: 4 kV
- nominal_voltage_ii2: 630 V
- rated_surge_voltage_ii2: 4 kV
- rated_current: 12 A
- rated_voltage_ul_use_group_b: 300 V
- rated_current_ul_use_group_b: 15 A
- rated_voltage_ul_use_group_d: 300 V
- rated_current_ul_use_group_d: 10 A
- rated_voltage_ul_1977: 600 V
- rated_current_ul_1977: 15 A
- rated_voltage_csa_use_group_b: 300 V
- rated_current_csa_use_group_b: 15 A
- rated_voltage_csa_use_group_d: 300 V
- rated_current_csa_use_group_d: 10 A
- material_group: I
- insulation_material: Polyamide 66 (PA66)
- flammability_class_ul94: V0
- clamping_spring_material: Chrome nickel spring steel (CrNi)
- contact_material: Electrolytic copper (E) Cu
- contact_plating: tin-plated
- fire_load: 0.142 MJ
- weight: 8.1 g
- limit_temperature_range: -60 … +100 °C
