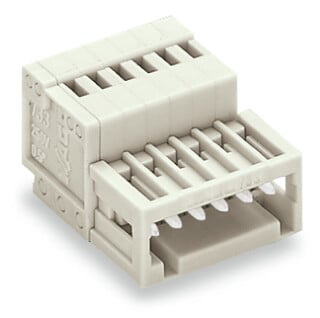

WAGO 733204 4 Pole Connector
The WAGO 733-204 is a 4-pole connector designed for use in a wide range of industrial applications. It features a compact design with a 2.5mm pin spacing and utilizes WAGO's innovative cage clamp connection technology, ensuring vibration-proof and easy termination. The connector is 100% protected against mismating, enhancing reliability. It is RoHS compliant and approved by various agencies including ABS, BV, CSA, DNV, GL, KEMA, LR, RMR, and UR, making it suitable for diverse environments. The connector accepts wire gauges from 28-20 AWG and offers a wide range of approvals for various voltage and current ratings.
WAGO 733204 4 Pole Connector Specifications:
- Product Description: MALE CONNECTOR 4 POLE PIN SPACING 2.5 MM / 0.098 IN 100% PROTECTED AGAINST MISMATING
- Packing Unit: 200 pieces
- Color: light gray
- Number of Connection Points: 4
- Number of Potentials: 4
- Pole Count: 4
- Height: 11.8 mm / 0.465 in
- Width: 12.5 mm / 0.492 in
- Depth: 20.3 mm / 0.799 in
- Pin Spacing: 2.5 mm / 0.098 in
- Pollution Degree: 2
- Measured Voltage EN: 160 V / 320 V
- Measured Shock Voltage: 2.5 kV
- Current Intensity EN: 6 A
- Connection Method: CAGE CLAMP® CONNECTION
- Cross Section mm² (solid): 0.08 - 0.5 mm²
- Cross Section mm² (fine-stranded): 0.08 - 0.5 mm²
- Cross Section mm² (ferrule & collar): 0.25 - 0.34 mm²
- Cross Section mm² (ferrule, no collar): 0.25 - 0.34 mm²
- Cross Section AWG: 28 - 20 AWG
- Strip Length from: 5 mm
- Strip Length to: 6 mm
- Material Group: Electrolytic copper (Ecu) tin-plated
- Contact Material: Electrolytic copper (Ecu) tin-plated
- Strain Relief Plate: 6 mm
- ABS Approval: 04-HG469925/1-PDA
- BV Approval: 11915/A0
- CCA Approval: NL5640
- CSA Approval: 154112-1465035
- DNV Approval: E-9218
- GL Approval: 17296-00HH
- KEMA Approval: 2077592.01
- LR Approval: 96/20035
- RMR Approval: 11130002
- UR Approval: E45171
- UR Approval 2: E45172
- Voltage [V]: 250
- Current [A]: 4
Buy the 733-204 WAGO 4 Pole Connector | myMectronic
Purchase the WAGO 733-204 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 733204?
You can click on the BUY or RFQ button to purchase 733204 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 733204?
You can download the 733204 datasheet or visit the WAGO website for support.
Who is the manufacturer of 733204?
WAGO
