WAGO 734163105604 THR Male Header Connector

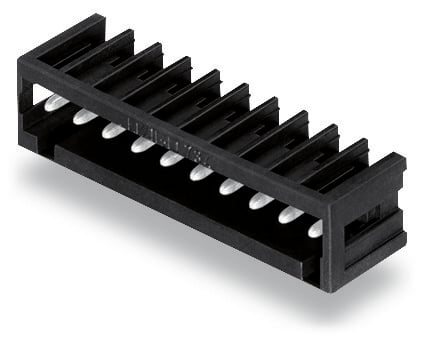

The WAGO 734-163/105-604 is a THR (Through-Hole Reflow) male header specifically engineered for surface mount technology (SMT) applications. Its angled design and 3.5mm pin spacing facilitate efficient PCB layout and assembly. The header's pin enclosure design optimizes thermal penetration, enabling lower soldering temperatures. It offers 100% protection against mismating and is available in tape-and-reel packaging for automated processes. This connector is ideal for applications requiring reliable and secure connections in various industrial and commercial settings.
WAGO 734163105604 THR Male Header Connector Specifications:
- Rated voltage (III / 3): 160 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated impulse voltage (II / 2): 2.5 kV
- Rated current: 10 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- No. of poles: 3
- Total number of potentials: 3
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 3.5 mm
- Width: 12.9 mm
- Height: 10.9 mm
- Height from the surface: 8.5 mm
- Depth: 10.3 mm
- Solder pin length: 2.4 mm
- Solder pin dimensions: 1 x 1 mm
- Contact type (pluggable connector): Male connector/plug
- Connector connection type: for PCBs
- Mismating protection: Yes
- Mating direction to the PCB: 0 °
- PCB contact: THR
- Number of solder pins per potential: 1
- Color: black
- Insulating material: Polyphthalamide (PPA GF)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.017 MJ
- Weight: 1 g
- Limit temperature range: -60 … +100 °C
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918848893
- Customs Tariff No.: 85366990990
