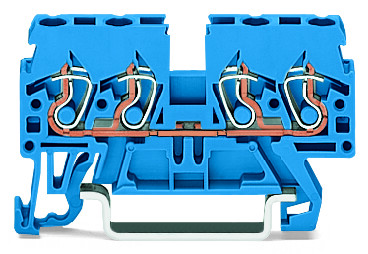

WAGO 870834 4-conductor Terminal Block
The WAGO 870-834 is a 4-conductor through terminal block designed for reliable and safe electrical connections in industrial environments. It is suitable for Ex i applications and features WAGO’s innovative CAGE CLAMP® connection technology, ensuring secure and easy connections. The terminal block is designed for DIN-rail 35 x 15 and 35 x 7.5 mounting and is ideal for applications requiring robust and space-saving connectivity. It is rated for 500V and 24A, making it suitable for a wide range of industrial applications.
WAGO 870834 4-conductor Terminal Block Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 27.5 mm / 1.083 inch
- Depth: 55 mm / 2.165 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Side marking
- Color: blue
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.121 MJ
- Weight: 7.4 g
- Product Group: 16 (Rail Mounted Terminal Block with CCC)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454094652
- Customs Tariff No.: 85369010000
