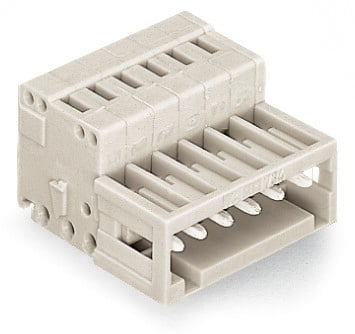

WAGO 734309 9-pole Male Connector
The WAGO 734-309 is a 9-pole male connector designed for versatile applications. Its CAGE CLAMP actuation simplifies both pre-assembly and on-unit wiring, accommodating various conductor types. The connector offers robust protection against mismating and is suitable for wire-to-wire and board-to-wire connections. It's commonly used in industrial automation, control panels, and power distribution systems where reliable and efficient connections are essential. Strain relief plates and housings are available for both factory and field assembly, enhancing its adaptability.
WAGO 734309 9-pole Male Connector Specifications:
- Rated voltage (III / 3): 160 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated impulse voltage (II / 2): 2.5 kV
- Rated current: 10 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 1.5 mm²
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- No. of poles: 9
- Total number of connection points: 9
- Total number of potentials: 9
- Pin spacing: 3.5 mm / 0.138 inch
- Width: 33.9 mm / 1.335 inch
- Height: 13.4 mm / 0.528 inch
- Depth: 22.3 mm / 0.878 inch
- Contact type: Male connector/plug
- Mismating protection: Yes
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.146 MJ
- Weight: 7.4 g
- Limit temperature range: -60 … +100 °C
Buy the 734-309 WAGO 9-pole Male Connector | myMectronic
Purchase the WAGO 734-309 male connector securely online for reliable connections in your industrial applications.
