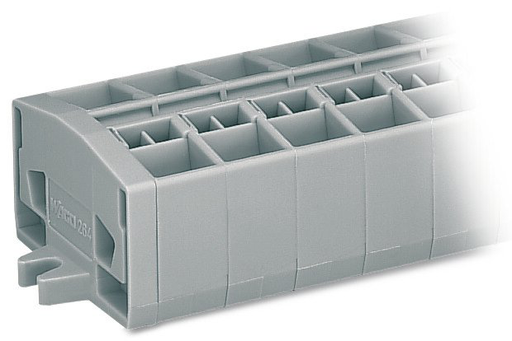

WAGO 264204 4-conductor terminal strip
The WAGO 264-204 terminal strip is a robust and reliable solution for connecting multiple conductors in industrial applications. This 4-pole strip is designed for screw or similar mounting types, offering flexibility in installation. The CAGE CLAMP® connection technology ensures a secure and vibration-resistant connection, while the 2.5 mm² conductor size accommodates a range of wiring needs. Its horizontal design and gray color contribute to organized and efficient panel layouts. Suitable for use in control cabinets, machinery, and other industrial environments, the 264-204 provides a dependable connection point for power and signal distribution.
WAGO 264204 4-conductor terminal strip Specifications:
- Nominal Voltage (III/3): 800 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Current: 24 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Note (Conductor Cross-Section): 12 AWG: THHN, THWN
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pole No.: 4
- Total Number of Connection Points: 16
- Total Number of Potentials: 4
- Number of Levels: 1
- Wiring Type: Front-entry wiring
- Width: 56 mm / 2.205 inch
- Height from the Surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Module Width: 10 mm / 0.394 inch
- Design: horizontal type
- Mounting Type: Mounting flange
- Marking Level: Center marking
- Color: gray
- Insulation Material: Polyamide (PA66)
- Flammability Class per UL94: V0
- Fire Load: 0.514 MJ
- Weight: 27 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918418683
- Customs Tariff Number: 85369010000
Buy the 264-204 WAGO 4-conductor terminal strip | myMectronic
Purchase the WAGO 264-204 terminal strip securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 264204?
You can click on the BUY or RFQ button to purchase 264204 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 264204?
You can download the 264204 datasheet or visit the WAGO website for support.
Who is the manufacturer of 264204?
WAGO
