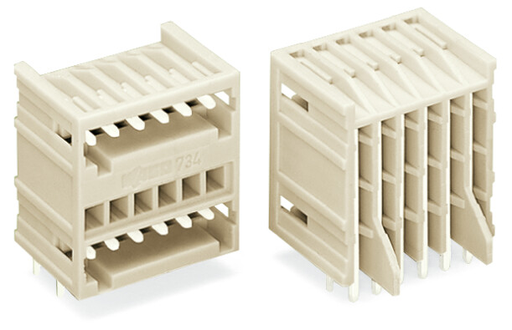

WAGO 734406001000 12-pole Double-Deck Header
The WAGO 734-406/001-000 is a robust 12-pole double-deck male header designed for horizontal or vertical PCB mounting. Its angled solder pins simplify integration, while the 100% mismating protection ensures secure connections. Rated for 160V and 10A, this header is suitable for a wide range of industrial applications, including power distribution, automation, and control systems. The polyamide 66 (PA 66) insulating material and tin-plated copper contacts provide excellent durability and corrosion resistance. Compatible with various CAD/CAE software for seamless design integration.
WAGO 734406001000 12-pole Double-Deck Header Specifications:
- Base Part Number: 734-406/001-000
- Number of Poles: 12
- Pin Spacing: 3.5 mm
- Solder Pin Length: 3.6 mm
- Solder Pin Dimensions: 1 x 1 mm
- Rated Voltage (III / 3): 160 V
- Rated Impulse Voltage (III / 3): 2.5 kV
- Rated Voltage (II / 2): 320 V
- Rated Impulse Voltage (II / 2): 2.5 kV
- Rated Current: 10 A
- Drilled Hole Diameter: 1.4 mm
- Width: 23.4 mm
- Height: 26.6 mm
- Height from Surface: 23 mm
- Depth: 21.8 mm
- Material Group: I
- Insulating Material: Polyamide 66 (PA 66)
- Flammability Class: V0
- Contact Material: Electrolytic Copper (E Cu)
- Contact Plating: Tin-plated
- Fire Load: 0.123 MJ
- Weight: 6.9 g
- Limit Temperature Range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918872928
- Customs Tariff No.: 85366990990
- Mismating Protection: Yes
- Mating Direction to PCB: 0 °
Buy the 734-406/001-000 WAGO 12-pole Double-Deck Header | myMectronic
Purchase the WAGO 734-406/001-000 securely online for reliable connectivity in your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 734406001000?
You can click on the BUY or RFQ button to purchase 734406001000 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 734406001000?
You can download the 734406001000 datasheet or visit the WAGO website for support.
Who is the manufacturer of 734406001000?
WAGO
