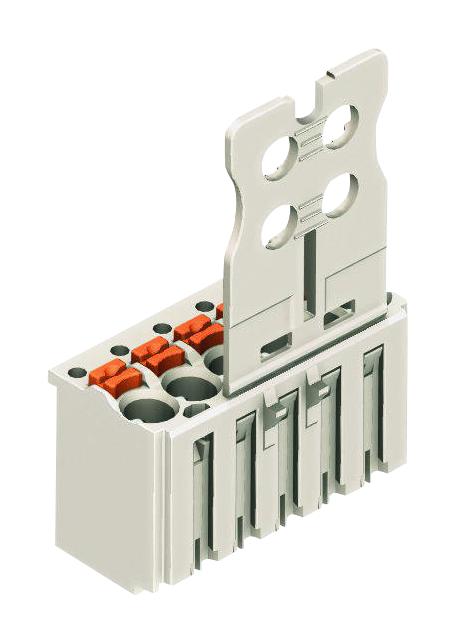

WAGO 20911110 Industrial Female Connector
The 10-pole female plug from the picoMAX system offers a universal, push-in connection mechanism compatible with solid and ferruled conductors. Its integrated locking latches prevent accidental disconnection, ensuring secure connections during industrial operations. Designed for quick wiring, it can be wired while mated or unmated, with a test port for easy contact verification. Materially constructed with polyphthalamide insulation, electrolytic copper contacts, and chrome nickel spring steel, it features a compact form factor with a pin spacing of 3.5 mm, dimensions of 35 mm width, 38 mm height, and 11.4 mm depth, rated for 10A at 160V, and approved under UL and IEC standards.
WAGO 20911110 Industrial Female Connector Specifications:
- Number of poles: 10
- Pin spacing: 3.5 mm
- Width: 35 mm
- Height: 38 mm
- Depth: 11.4 mm
- Rated voltage: 160V (IEC), 300V (UL)
- Rated impulse voltage: 2.5 kV
- Rated current: 10A
- Connection technology: Push-in CAGE CLAMP
- Conductor range: solid 0.2...1.5 mm², ferruled 0.25...0.75 mm²
- Strip length: 8...9 mm
- Material: Polyphthalamide (PPA GF)
- Contact material: Electrolytic copper, tin-plated
- Spring material: Chrome nickel spring steel
- Temperature range: -60°C to +100°C
- Color: Light gray
- Approval: UL, IEC 61984, KEMA/KEUR, DEKRA
- Dimensions: 35 mm width, 38 mm height, 11.4 mm depth
- Weight: 5.279 grams
Buy the WAGO 2091-1110 – Reliable Female Connection for Industrial Applications
Purchase the WAGO 2091-1110 female connector online today and enjoy secure, quick wiring with push-in terminations, integrated locking latches, and high-quality materials suitable for demanding industrial environments. Its compact design and proven safety features ensure reliable connections for automation, control systems, and distribution panels. With UL and IEC approvals, this connector is built to meet international standards, making it ideal for professional installers. Order now and streamline your wiring projects with confidence and efficiency.
Buy WAGO 2091-1110 now and experience unmatched reliability and performance in industrial wiring solutions.
Frequently Asked Questions
Where can I buy WAGO 20911110?
You can click on the BUY or RFQ button to purchase 20911110 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20911110?
You can download the 20911110 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20911110?
WAGO
