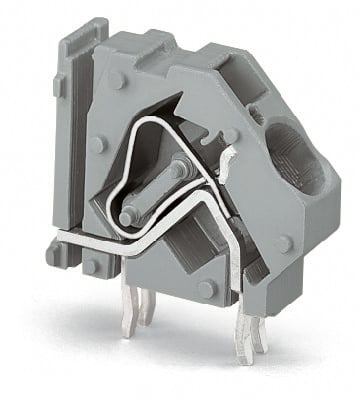

WAGO 745853006000 Stackable PCB Terminal Block
The WAGO 745-853/006-000 is a versatile stackable PCB terminal block ideal for creating custom PCB terminal strip assemblies. Utilizing the innovative CAGE CLAMP® connection technology, it ensures reliable and tool-free connections. The block supports commoning potentials via comb-style jumper bars and offers four solder pins for increased mechanical strength. It is suitable for a wide range of industrial applications requiring robust and efficient PCB connections, and is UL approved up to 600V.
WAGO 745853006000 Stackable PCB Terminal Block Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 76 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
- Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 10 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 10 mm²
- Pin spacing: 10 mm / 0.394 inch
- Width: 11.5 mm / 0.453 inch
- Height: 33.5 mm / 1.319 inch
- Solder pin length: 6.5 mm
- Solder pin dimensions: 1.2 x 1.6 mm
- Drilled hole diameter (tolerance): 2.2 mm
- Material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Weight: 9 g
- Limit temperature range: -60 … +105 °C
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4044918303149
- Customs Tariff No.: 85369010000
