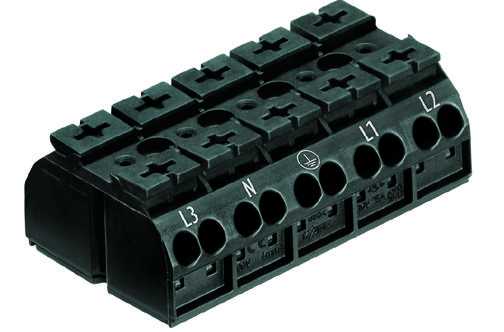

WAGO 862504 4-conductor Terminal Strip
The WAGO 862-504 is a 4-pole chassis-mount terminal strip designed for reliable electrical connections in industrial environments. It features a robust construction, push-in CAGE CLAMP connections, and is suitable for applications requiring secure and organized wiring. The terminal strip is ideal for use in control cabinets, machinery, and other industrial equipment where reliable power distribution is essential. Its compact design and ease of installation make it a versatile solution for a wide range of applications.
WAGO 862504 4-conductor Terminal Strip Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 32 A
- Connection technology: Push-in CAGE CLAMP
- Actuation type: Push-button
- Connectable conductor materials: Copper
- Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.5 … 2.5 mm² / 20 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.75 mm² / 18 AWG
- Strip length: 10 … 11 mm / 0.39 … 0.43 inch
- No. of poles: 4
- Total number of connection points: 16
- Total number of potentials: 4
- Type of wiring: Side-entry wiring
- Pin spacing: 12 mm / 0.472 inch
- Width: 48 mm / 1.89 inch
- Height from the surface: 22.3 mm / 0.878 inch
- Depth: 35 mm / 1.378 inch
- Mounting type: Screw mounting
- Marking: plain
- Color: black
- Fire load: 0.503 MJ
- Weight: 27.3 g
- Packaging type: bag
- Country of origin: DE
- GTIN: 4045454750268
- Customs Tariff No.: 85369010000
Buy the 862-504 WAGO 4-conductor Terminal Strip | myMectronic
Purchase the WAGO 862-504 terminal strip securely online and ensure reliable connections for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 862504?
You can click on the BUY or RFQ button to purchase 862504 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 862504?
You can download the 862504 datasheet or visit the WAGO website for support.
Who is the manufacturer of 862504?
WAGO
