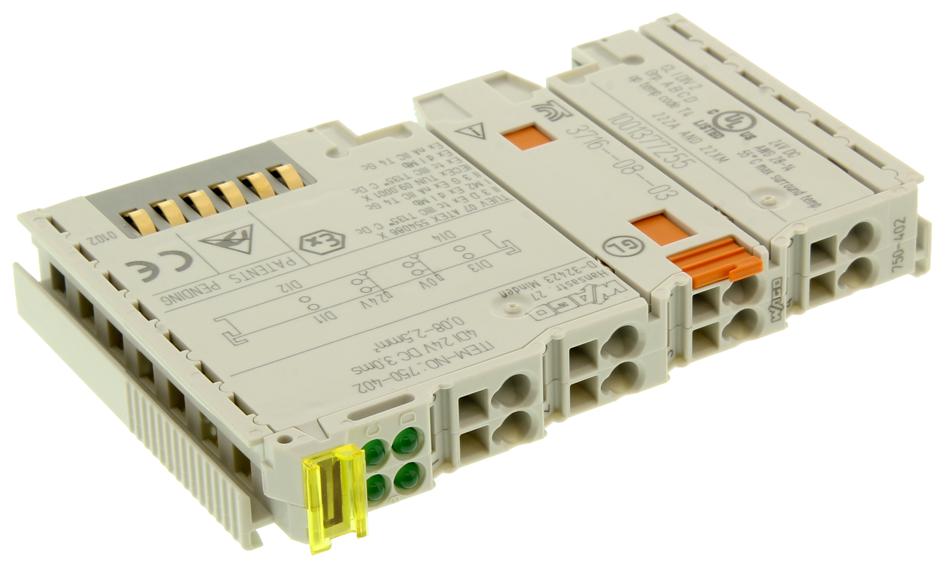

WAGO 750402 Digital Input Module
The 750-402 is a 24V DC 4-channel digital input module designed for positive switching with high reliability. It features a 2 to 3 conductor connection, noise-rejection filters with adjustable time constants, and provides electrical isolation between system and field levels. The module supports a wide temperature range from -20°C to 60°C and has an IP20 protection rating, making it suitable for automation and process control environments. Its CAGE CLAMP® connection technology ensures secure wiring and ease of installation, ideal for industrial automation systems requiring precise digital signal handling.
WAGO 750402 Digital Input Module Specifications:
- Number of inputs: 4
- Voltage via power jumper contacts: 24 VDC (-25%...+30%)
- Input filter: 3.0 ms / 0.2 ms
- Input voltage range: 3V to 5V (logic 0), 15V to 30V (logic 1)
- Current consumption (internal): 7.5 mA
- Input current: 4.5 mA
- Isolation voltage: 500 V system/supply
- Supported wire cross section: 0.08 mm² to 2.5 mm² / AWG 28...14
- Operating temperature: -20°C to 60°C
- Protection rating: IP20
- Connection technology: CAGE CLAMP®
- Dimensions: Width 12 mm, height approx. 80 mm, depth approx. 70 mm
- Certifications: UL 508, CE, IECEx, ATEX, Korea Certification IE
- Conformity: EN 61000-6-2, EN 61000-4-6, marine applications
Buy the Buy WAGO Digital Input Module Part Number 750402 Online
Enhance your automation system with the WAGO 750402 digital input module. This 4-channel, 24V DC module offers noise filtering, electrical isolation, and quick CAGE CLAMP® connection technology. Suitable for industrial control, it ensures precise signal processing with a wide temperature range of -20°C to 60°C. The IP20-rated device is easy to install and maintain, making it ideal for demanding automation environments. Purchase online now for reliable, professional-grade digital input management.
Get WAGO 750402 digital input module today—designed for high reliability and easy wiring in automation and process control systems.
Frequently Asked Questions
Where can I buy WAGO 750402?
You can click on the BUY or RFQ button to purchase 750402 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 750402?
You can download the 750402 datasheet or visit the WAGO website for support.
Who is the manufacturer of 750402?
WAGO
