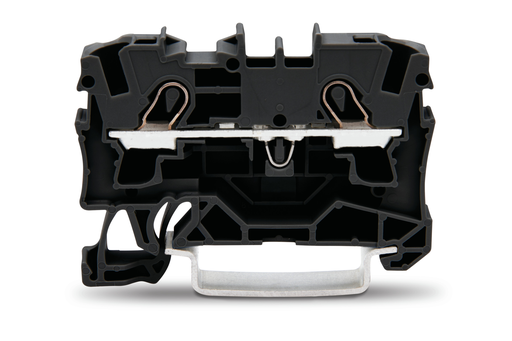

WAGO 20041205 2-conductor Through Terminal Block
The WAGO 2004-1205 is a robust 2-conductor through terminal block ideal for industrial applications requiring reliable connections. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it utilizes the Push-in CAGE CLAMP® technology for secure and efficient wiring. The terminal block is suitable for Ex e II applications and offers a wide range of approvals including UL, CSA, and ATEX. It's a versatile solution for power distribution and signal transmission in various industrial environments.
WAGO 20041205 2-conductor Through Terminal Block Specifications:
- Rated voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 32 A
- Rated current 2: 41 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 30 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 30 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 30 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 4 mm²
- Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Solid conductor; push-in termination: 1.5 … 6 mm² / 14 … 10 AWG
- Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
- Strip length: 11 … 13 mm / 0.43 … 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Number of jumper slots: 2
- Width: 6.2 mm / 0.244 inch
- Height: 52.3 mm / 2.059 inch
- Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: black
- Insulation material: Polyamide (PA66)
- Fire load: 0.114 MJ
- Weight: 6.3 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454537449
- Customs tariff number: 85369010000
