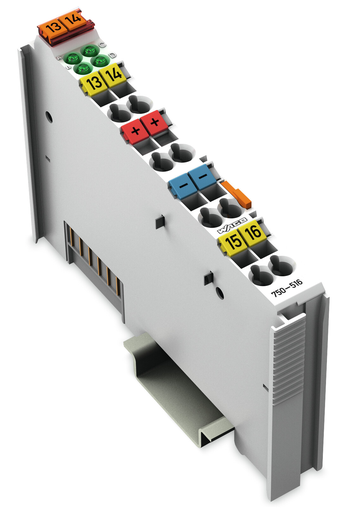

WAGO 750516 Relay Module with 1 Make
The WAGO 750-516 relay module provides a robust solution for switching applications in industrial environments. With a 1 make contact, it's suitable for various control circuits and automation tasks. The module boasts a coil voltage of 48V DC, a maximum switching voltage of 250V AC / 30V DC, and a maximum make current of 5A. Its mechanical life is rated for up to 2 million switching operations at maximum resistive load, ensuring long-term reliability. Operating within a temperature range of -25°C to +40°C, this module is designed for demanding conditions.
WAGO 750516 Relay Module with 1 Make Specifications:
- Coil Voltage: 48 V DC
- Max Switching Voltage AC: 250 V
- Max Switching Voltage DC: 30 V
- Max Make Current: 5 A
- Max Break Current: 5 A
- Max Continuous Current: 5 A
- Max Switching Power Resistive VA: 1250 VA
- Max Switching Power Resistive W: 150 W
- Pull-in Power: 100 mW
- Operating Power: 200 mW
- Pull-in Time Typ: 6 ms
- Drop-out Time Typ: 6 ms
- Bounce Time Typ: 2 ms
- Dielectric Strength Contact-Coil AC: 2.5 kV
- Mechanical Life: 2 x 10^7 switching operations
- Mechanical Life at Max Resistive Load AC: 1 x 10^5 switching operations
- Ambient Operating Temperature: -25 °C ... +40 °C
- Current Consumption at UN: 8.6 mA
- Weight: 15.7 g
- Color: grey
- Customs Tariff No.: 85369010
- Country of Origin: Deutschland
Buy the 750-516 WAGO Relay Module with 1 Make | myMectronic
Purchase the WAGO 750-516 relay module securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 750516?
You can click on the BUY or RFQ button to purchase 750516 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 750516?
You can download the 750516 datasheet or visit the WAGO website for support.
Who is the manufacturer of 750516?
WAGO
