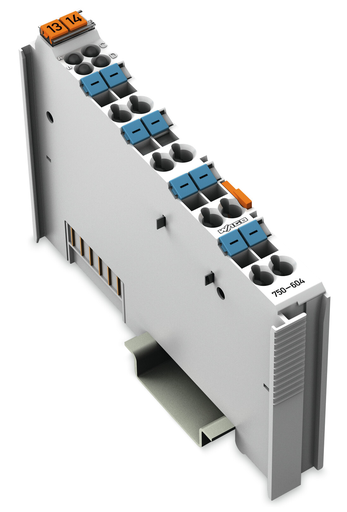

WAGO 750604 8-way Potential Distribution Module
The WAGO 750-604 potential distribution module offers a convenient solution for distributing 0V potential to outputs. This module simplifies wiring and eliminates the need for separate terminal blocks. It draws power from adjacent I/O modules, streamlining the connection process and reducing overall system complexity. Ideal for industrial automation and control systems where precise voltage distribution is required.
Authorized Distributors
Source:Onlinecomponents.com
Part No:750-604
Stock:50
Inv Date:06-04-2026
Price: Unit price: $64.06
Buy/RFQ:
Source:Master Electronics
Part No:750-604
Stock:50
Inv Date:06-04-2026
Price: Unit price: $64.06
Buy/RFQ:
WAGO 750604 8-way Potential Distribution Module Specifications:
- Signal type: DC 0 V
- Supply voltage (system): 5 VDC; via data contacts
- Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Current carrying capacity (power jumper contacts): 10 A
- Connection type (1): Field supply
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Width: 12 mm / 0.472 inch
- Height: 100 mm / 3.937 inch
- Depth: 69.8 mm / 2.748 inch
- Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch
- Mounting type: DIN-35 rail
- Color: light gray
- Housing material: Polycarbonate; polyamide 6.6
- Fire load: 0.911 MJ
- Weight: 45.4 g
- Conformity marking: CE
- Surrounding air temperature (operation): 0 … 55 °C
- Surrounding air temperature (storage): -40 … 85 °C
- Protection type: IP20
- Pollution degree: 2 per IEC 61131-2
- Operating altitude: 0 … 2000 m
- Mounting position: horizontal (standing/lying); vertical
- Relative humidity: 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: per EN 61000-6-2, marine applications
- EMC emission of interference: per EN 61000-6-4, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H S contaminant concentration: 10 ppm
- Permissible SO contaminant concentration: 25 ppm
- Product Group: 15 (Remote I/O)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454619220
- Customs tariff number: 85389091890
Buy the 750-604 WAGO 8-way Potential Distribution Module | myMectronic
Purchase the WAGO 750-604 potential distribution module securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 750604?
You can click on the BUY or RFQ button to purchase 750604 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 750604?
You can download the 750604 datasheet or visit the WAGO website for support.
Who is the manufacturer of 750604?
WAGO
