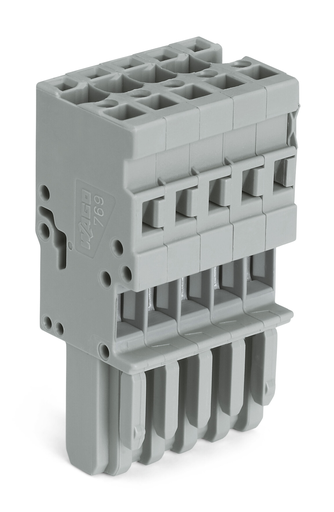

WAGO 769105 5-pole Female Connector
The WAGO 769-105 is a 5-pole female connector designed for use in pluggable modules. It adheres to EN 61984 standards, ensuring safe operation by prohibiting mating or unmating under load. The connector utilizes WAGO’s CAGE CLAMP® connection technology, known for its reliable and vibration-resistant clamping. It is suitable for a wide range of industrial applications, including power distribution, automation, and control systems. The connector's robust design and high-quality materials ensure long-term performance and reliability in demanding environments. Always refer to the product documentation for complete usage guidelines and safety precautions.
WAGO 769105 5-pole Female Connector Specifications:
- Nominal Voltage (III/3): 500 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 32 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Nominal Cross-Section: 4 mm²
- Solid Conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pole No.: 5
- Total Number of Connection Points: 5
- Total Number of Potentials: 5
- Wiring Type: Front-entry wiring
- Width: 25 mm / 0.984 inch
- Height: 45.2 mm / 1.78 inch
- Depth: 18.3 mm / 0.72 inch
- Module Width: 5 mm / 0.197 inch
- Contact Type (Pluggable Connector): Female connector/socket
- Connector (Connection Type): for conductor
- Insulation Material: Polyamide (PA66)
- Flammability Class per UL94: V0
- Fire Load: 0.267 MJ
- Weight: 15.7 g
- Product Group: 18 (X-COM-System)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918471480
- Customs Tariff Number: 85366990990
