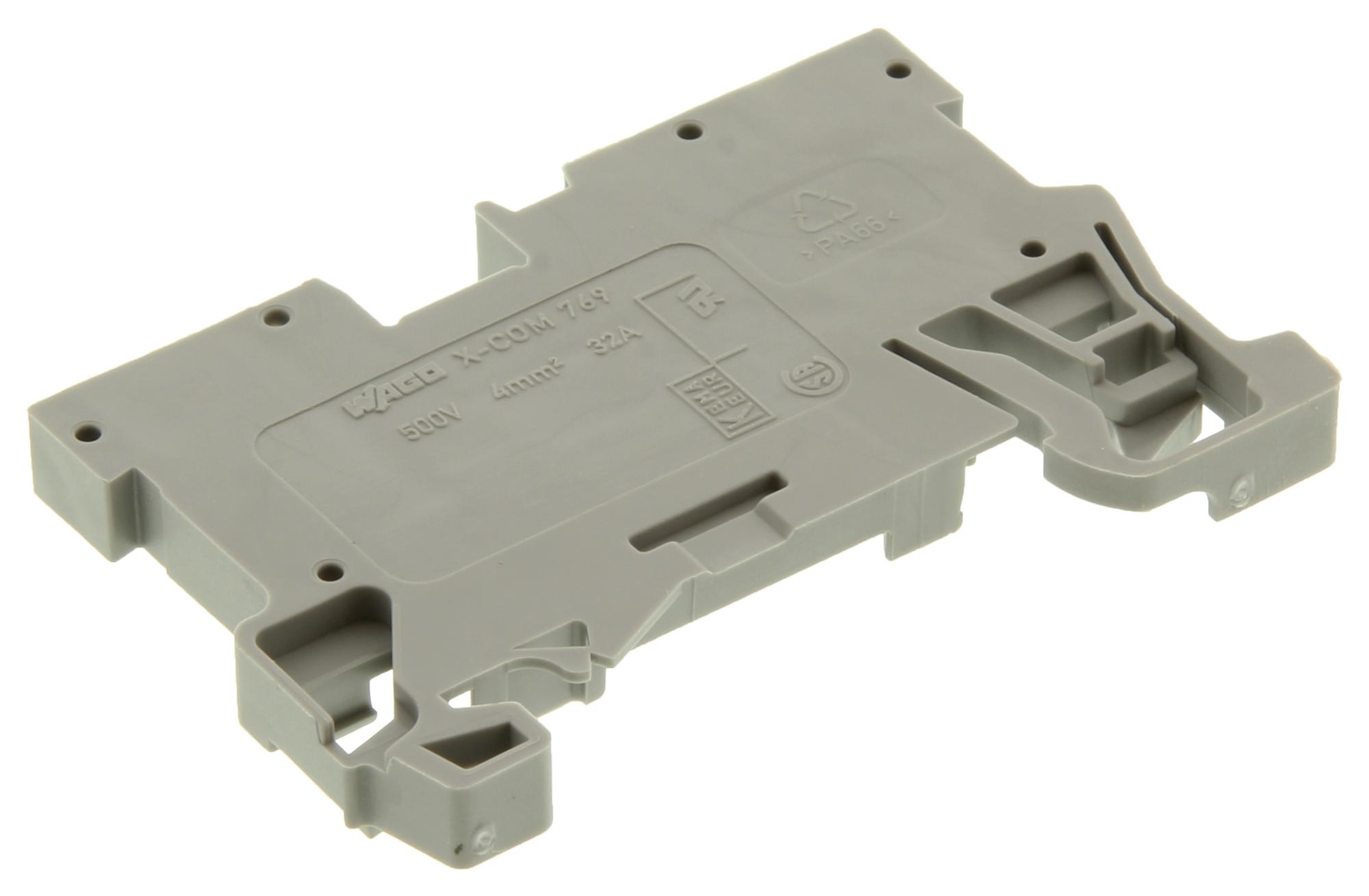

WAGO 769176 1-conductor Carrier Terminal Block
The WAGO 769-176 carrier terminal block provides a robust and efficient solution for connecting single conductors in industrial environments. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this block offers a 4mm² cross-section and utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring reliable and vibration-resistant connections. The gray polyamide 66 (PA 66) construction provides excellent insulation and durability. It is suitable for a wide range of applications including power distribution, control circuits, and automation systems. The terminal block’s front-entry wiring design simplifies installation and maintenance, making it a versatile choice for both new installations and retrofits.
WAGO 769176 1-conductor Carrier Terminal Block Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 32 A
- Connection technology: CAGE CLAMP®
- Actuation type: Open Tool Slot
- Connectable conductor materials: Copper
- Nominal cross section: 4 mm²
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 1
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 28.5 mm / 1.122 inch
- Depth: 52.5 mm / 2.067 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.101 MJ
- Weight: 5.3 g
- Product Group: 18 (X-COM-System)
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4045454871697
- Customs Tariff No.: 85366990990
Buy the 769-176 WAGO 1-conductor Carrier Terminal Block | myMectronic
Purchase the WAGO 769-176 carrier terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 769176?
You can click on the BUY or RFQ button to purchase 769176 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 769176?
You can download the 769176 datasheet or visit the WAGO website for support.
Who is the manufacturer of 769176?
WAGO
