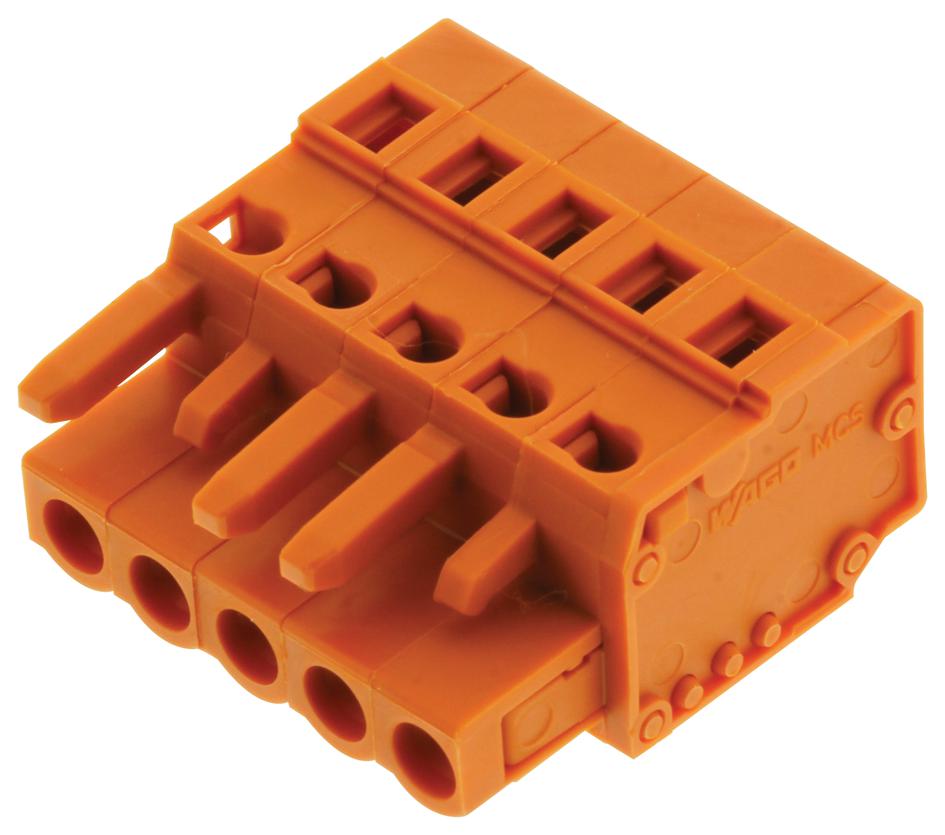

WAGO 231305026000 5-pole Female Connector
The WAGO 231-305/026-000 is a 5-pole female connector designed for versatile applications. Its CAGE CLAMP® connection technology simplifies wiring and allows for both vertical and horizontal actuation. The integrated test ports and coding option enhance functionality and prevent mismating. This connector is ideal for industrial automation, control panels, and power distribution systems where reliable and efficient connections are essential. It supports a wide range of conductor sizes and offers robust performance under various environmental conditions.
WAGO 231305026000 5-pole Female Connector Specifications:
- No. of poles: 5
- Pin Spacing: 5.08 mm / 0.2 in
- Total number of connection points: 5
- Total number of potentials: 5
- Color: orange
- Overvoltage category EN 1: III
- Pollution degree (1): 2
- Rated voltage EN (1) [V]: 320
- Rated surge voltage (1) [kV]: 4
- Nominal current [A]: 16
- Overvoltage category EN 2: II
- Degree of pollution (2): 2
- Rated voltage EN (2) [V]: 630
- Rated surge voltage (2) [kV]: 4
- Nominal current (2) [A]: 16
- Overvoltage category EN 3: III
- Degree of pollution (3): 3
- Rated voltage EN (3) [V]: 320
- Rated surge voltage (3) [kV]: 4
- Nominal current (3) [A]: 16
- Number of individual connection objects at the product: 1
- Connection technology (1): CAGE CLAMP®
- Solid sizes 1: 0.08 … 0.2 mm² / 28 … 12 AWG
- Fine-stranded wires 1: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded wires with insulated ferrule 1: 0.25 … 1.5 mm²
- Fine-stranded wires with uninsulated ferrule 1: 0.25 … 2.5 mm²
- Strip length 1: 8 … 9 mm / 0.31 … 0.35 in
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability rating per UL 94: V0
- Limit temperature range: -60 C … 85 C
- Clamping spring material: Chrome-nickel spring steel (CrNi)
- Contact material: Copper alloy
- Contact plating: tin-plated
- Fire load [MJ]: 0.133
- Weight [g]: 9.268
- Width: 26.9 mm / 1.059 in
- Height: 14.3 mm / 0.563 in
- Length: 26.45 mm / 1.041 in
