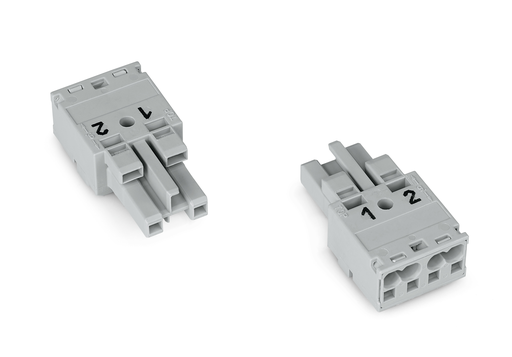

WAGO 770242 2-Pole Socket Connector
The WAGO 770-242 is a robust 2-pole socket connector designed for reliable and efficient power distribution in diverse industrial settings. Utilizing WAGO’s innovative push-in CAGE CLAMP® spring pressure connection technology, it allows for simple and secure connections of solid conductors. The connector’s design incorporates features like protection against mismating and the ability to be clearly printed and color-coded for custom identification. It is suitable for applications in lighting fixtures, PCB distribution, and flying leads, ensuring secure and organized connections. The WAGO 770-242 is a dependable solution for maintaining power integrity and streamlining installation processes.
WAGO 770242 2-Pole Socket Connector Specifications:
- Color: gray
- Electrical data: approx. 1mΩ contact resistance, approx. 0.25mΩ contact transition plug/socket
- Ratings per IEC/EN 60664-1: Rated voltage (III / 3): 250 V, Rated impulse voltage (III / 3): 4 kV, Rated current: 25 A
- Approvals per UL 1977: Rated voltage per UL 1977 (factory wiring only): 600 V, Rated current per UL 1977 (factory wiring only): 23 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross section: 4 mm²
- Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Solid conductor, push-in termination: 1.5 … 4 mm² / 16 … 12 AWG
- Stranded conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
- Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm² / 20 … 14 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1.5 mm² / 16 AWG
- Strip length: 9 mm / 0.35 inch
- No. of poles: 2
- Total number of connection points: 4
- Total number of potentials: 2
- Conductor entry direction to mating direction: 0 °
- Pin spacing: 10 mm / 0.394 inch
- Width: 20 mm / 0.787 inch
- Height: 12.9 mm / 0.508 inch
- Depth: 37.5 mm / 1.476 inch
- Coding: B
- Mating force of a plug-in connection: approx. 20 … 70 N
- Retention force of a plug-in connection: When locked: > 80 N
- Unmating force of a plug-in connection: when unlocked: approx. 20 … 70 N
- Protection class: IP20
- Contact type (pluggable connector): Female connector/socket
- Locking of plug-in connection: locking lever
- Insulating material: Polyamide 66 (PA 66)
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Fire load: 0.114 MJ
- Weight: 6.6 g
- Processing temperature: -5 … +40 °C
- Continuous operating temperature: -35 … +85 °C
