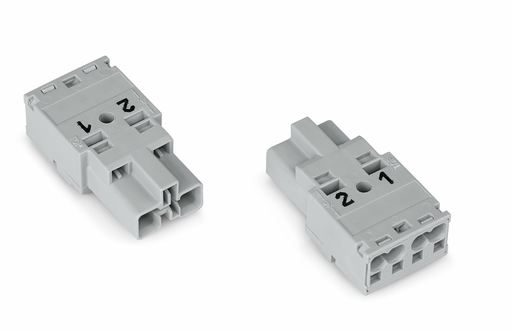

WAGO 770252 2-Pole Plug Connector
The WAGO 770-252 is a 2-pole plug connector designed for reliable and efficient power distribution in various industrial settings. It utilizes WAGO’s innovative push-in CAGE CLAMP® spring pressure connection technology, allowing for simple and secure connections of solid conductors. The connector is protected against mismating and offers clear marking and color-coding capabilities for custom requirements. Its robust construction and secure locking mechanism ensure a stable and dependable connection, making it ideal for applications requiring high reliability and ease of maintenance. The 770-252 is factory-equipped with locking levers for secure connections and is suitable for a wide range of applications including lighting fixtures, PCB and distribution connectors.
WAGO 770252 2-Pole Plug Connector Specifications:
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 4 kV
- Rated current: 25 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 23 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross section: 4 mm²
- Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Solid conductor, push-in termination: 1.5 … 4 mm² / 16 … 12 AWG
- Stranded conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
- Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm² / 20 … 14 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1.5 mm² / 16 AWG
- Strip length: 9 mm / 0.35 inch
- No. of poles: 2
- Total number of connection points: 4
- Total number of potentials: 2
- Conductor entry direction to mating direction: 0 °
- Pin spacing: 10 mm / 0.394 inch
- Width: 20 mm / 0.787 inch
- Height: 12.9 mm / 0.508 inch
- Depth: 37.5 mm / 1.476 inch
- Coding: B
- Mating force of a plug-in connection: approx. 20 … 70 N
- Retention force of a plug-in connection: > 80 N
- Unmating force of a plug-in connection: approx. 20 … 70 N
- Number of mating cycles: 200 (without resistive load)
- Protection class: IP20
- Contact type (pluggable connector): Male connector/plug
- Mismating protection: Yes
- Locking of plug-in connection: locking lever
- Contact material: Copper or copper alloy, surface-treated
- Fire load: 0.127 MJ
- Weight: 6.4 g
- Processing temperature: -5 … +40 °C
- Continuous operating temperature: -35 … +85 °C
- Product Group: 20 (WINSTA)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821541875
- Customs Tariff No.: 85366990990
