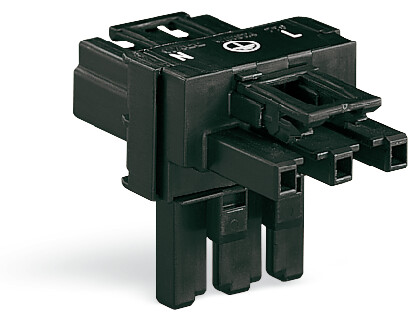

WAGO 770606 3-Pole T-Distribution Connector
The WAGO 770-606 is a 3-pole T-distribution connector engineered for reliable power distribution in various industrial applications. It incorporates features like protection against mismating, variable coding options, and locking levers to ensure secure connections. The connector is designed for easy installation and offers a robust solution for standard network applications. It's factory-equipped with locking levers for secure plug-in connections, and is suitable for use in a wide range of environments.
WAGO 770606 3-Pole T-Distribution Connector Specifications:
- Number of poles: 3
- Total number of potentials: 3
- Ground function: with preceding GND contact
- Pin spacing: 10 mm / 0.394 inch
- Width: 34 mm / 1.339 inch
- Height: 36.1 mm / 1.421 inch
- Depth: 48.9 mm / 1.925 inch
- Coding: A
- Mating force: approx. 20 … 70 N
- Retention force: > 80 N (when locked)
- Unmating force: approx. 20 … 70 N
- Mating cycles: 200 (without resistive load)
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 4 kV
- Rated current: 25 A
- Rated voltage per UL: 600 V
- Rated current per UL: 23 A
- Insulating material: Polyamide 66 (PA 66)
- Contact material: Copper or copper alloy, surface-treated
- Fire load: 0.317 MJ
- Weight: 16 g
- Processing temperature: -5 … +40 °C
- Continuous operating temperature: -35 … +85 °C
- Type of distribution connector: T-distribution connector
- Marking: L N
- Protection class: IP20
- Contact type: Socket/plug
- Mismating protection: Yes
- Locking lever: yes
- Country of origin: DE
- GTIN: 4044918582087
- Customs Tariff No.: 85366990990
