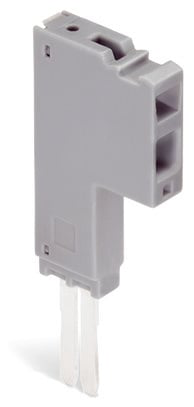

WAGO 285427 Power Tap Connector
The WAGO 285-427 power tap connector is a versatile solution for distributing power within 35 mm² high-current terminal bus systems. Its compact design (8 mm module width) makes it suitable for applications where space is limited. The connector is rated for 800V and 32A, ensuring reliable performance in demanding industrial environments. It utilizes WAGO’s innovative CAGE CLAMP® connection technology, providing a secure and vibration-resistant connection for conductors ranging from 0.2 to 6 mm². This connector is ideal for power distribution in control cabinets, machinery, and other industrial applications requiring robust and reliable power connections.
WAGO 285427 Power Tap Connector Specifications:
- Rated Voltage (III / 3): 800 V
- Rated Impulse Voltage (III / 3): 8 kV
- Rated Current: 32 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-Stranded Conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Strip Length: 12 … 13 mm / 0.47 … 0.51 inch
- Total Number of Connection Points: 1
- Total Number of Potentials: 1
- Type of Wiring: Side-entry wiring
- Width: 8 mm / 0.315 inch
- Module Width: 8 mm / 0.315 inch
- Design: angled
- Marking Level: Center marking
- Color: gray
- Fire Load: 0.132 MJ
- Weight: 9.3 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4045454549626
- Customs Tariff No.: 85366990990
Buy the 285-427 WAGO Power Tap Connector | myMectronic
Purchase the WAGO 285-427 power tap connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 285427?
You can click on the BUY or RFQ button to purchase 285427 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 285427?
You can download the 285427 datasheet or visit the WAGO website for support.
Who is the manufacturer of 285427?
WAGO
