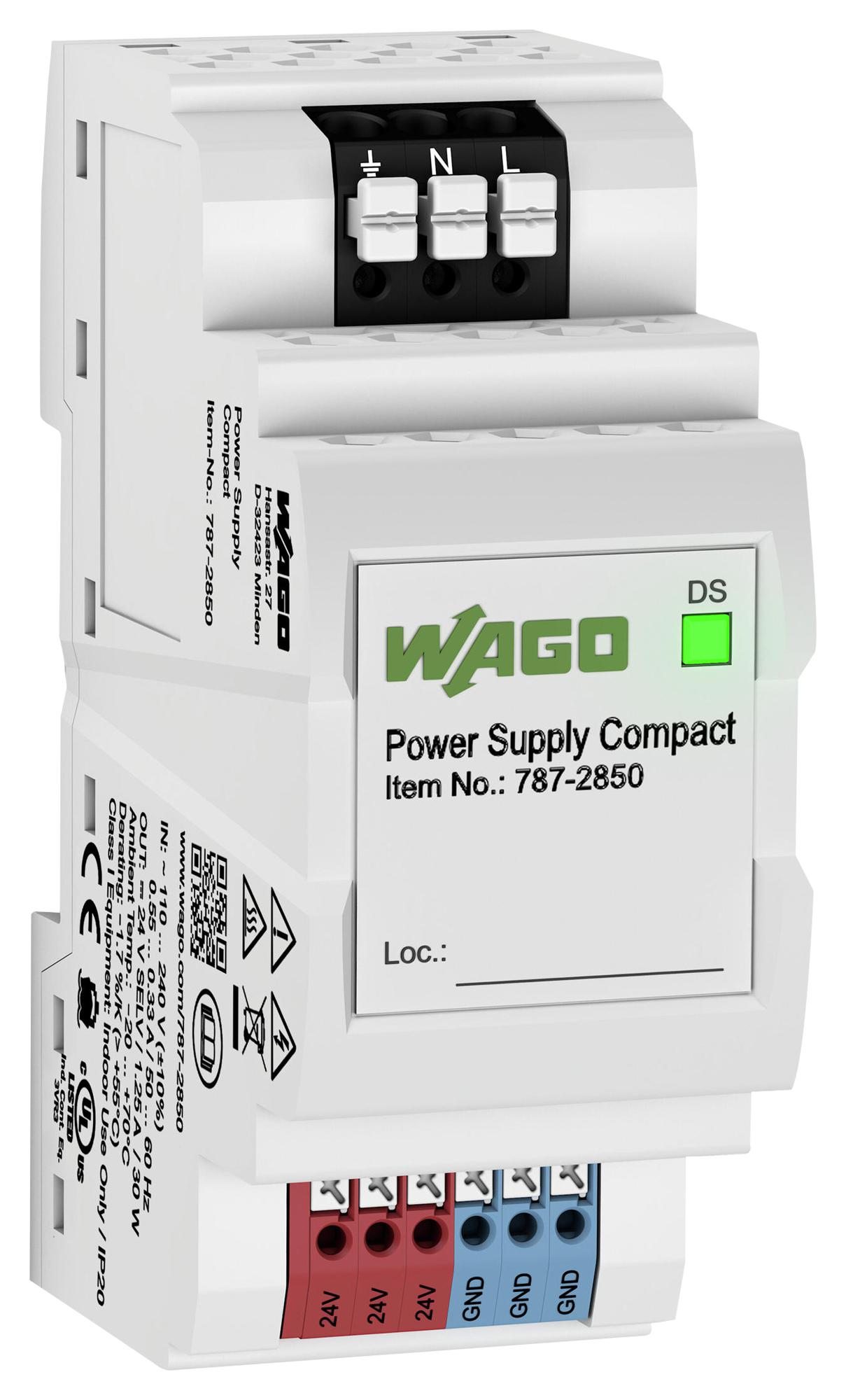

WAGO 7872850 Power Supply
This compact, reliable switched-mode power supply offers a 24 VDC output at 1.25 A, suitable for industrial automation. It features a stepped profile for easy installation in standard distribution boards and adheres to safety standards like SELV per EN/UL61010-1. The power supply operates from 100-264 V AC, providing stable performance with a power output of 30W and an efficiency of 88%. Its robust design includes LED status indicators, overcurrent protection, and a short-circuit-proof architecture, making it ideal for demanding industrial environments.
WAGO 7872850 Power Supply Specifications:
- Input Voltage Range: AC 100...264 V
- Nominal Input Voltage: AC 110...240 V
- Input Current: 0.55 A (110 VAC); < 0.33 A (240 VAC)
- Nominal Output Voltage: 24 VDC (SELV)
- Output Current: 1.25 A
- Nominal Output Power: 30 W
- Efficiency: 88%
- Power Loss (No Load): 0.5 W (230 VAC); < 4 W (230 VAC Nominal Load)
- Power Loss (Max): 5 W
- Overload Behavior: Hiccup
- Residual Ripple: 60 mV (peak-to-peak)
- Protection Class: IP20
- Isolation Voltage (Primary to Secondary): 3 kV
- Temperature Range (Operation): -20°C to +70°C (nominal), -20°C to +55°C (any position)
- Weight: 120 g
- Mounting: DIN-35 rail
Buy the WAGO 787-2850 – Reliable Power Supply for Industrial Applications
Purchase the WAGO 787-2850 power supply online today to ensure your industrial projects have a stable and reliable power source. Its compact design with a steady 24 VDC output at 1.25 A makes it ideal for automation and control systems. Features include easy DIN-rail mounting, LED operation indicators, overcurrent, and short-circuit protection. The power supply is RoHS compliant and designed for demanding environments, providing consistent performance with high efficiency. Secure your supply chain by buying this essential component online now.
Order your WAGO 787-2850 series compact power supply today and ensure dependable, safe power delivery for your industrial automation projects.
