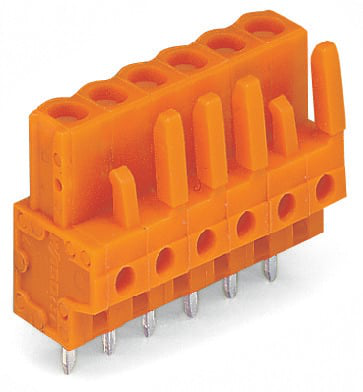

WAGO 232165 5-pole Female Header
The WAGO 232-165 is a 5-pole female header designed for reliable connections in various industrial applications. It's ideal for board-to-board and board-to-wire connections, offering a secure and organized solution. The header's touch-proof PCB outputs enhance safety, while coding fingers simplify identification and prevent mismating. Constructed with polyamide 66 and tin-plated copper alloy contacts, it ensures durability and excellent electrical performance. It is suitable for applications requiring robust and reliable connectivity in industrial control panels, automation systems, and other electronic devices.
WAGO 232165 5-pole Female Header Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Number of poles: 5
- Total number of connection points: 5
- Total number of potentials: 5
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 5.08 mm / 0.2 inch
- Width: 26.9 mm / 1.059 inch
- Height: 23.25 mm / 0.915 inch
- Height from the surface: 18.25 mm / 0.719 inch
- Depth: 11.6 mm / 0.457 inch
- Solder pin length: 5 mm
- Solder pin dimensions: 0.6 x 1 mm
- Drilled hole diameter (tolerance): 1.3 (- … +0.1) mm
- Contact type: Female connector/socket
- Mating direction to the PCB: 90 °
- Solder pin arrangement: over the entire female connector, in line
- Number of solder pins per potential: 1
- Color: orange
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Copper alloy
- Contact plating: tin-plated
- Fire load: 0.075 MJ
- Weight: 4.4 g
- Limit temperature range: -60 … +85 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918578721
- Customs Tariff No.: 85366990990
