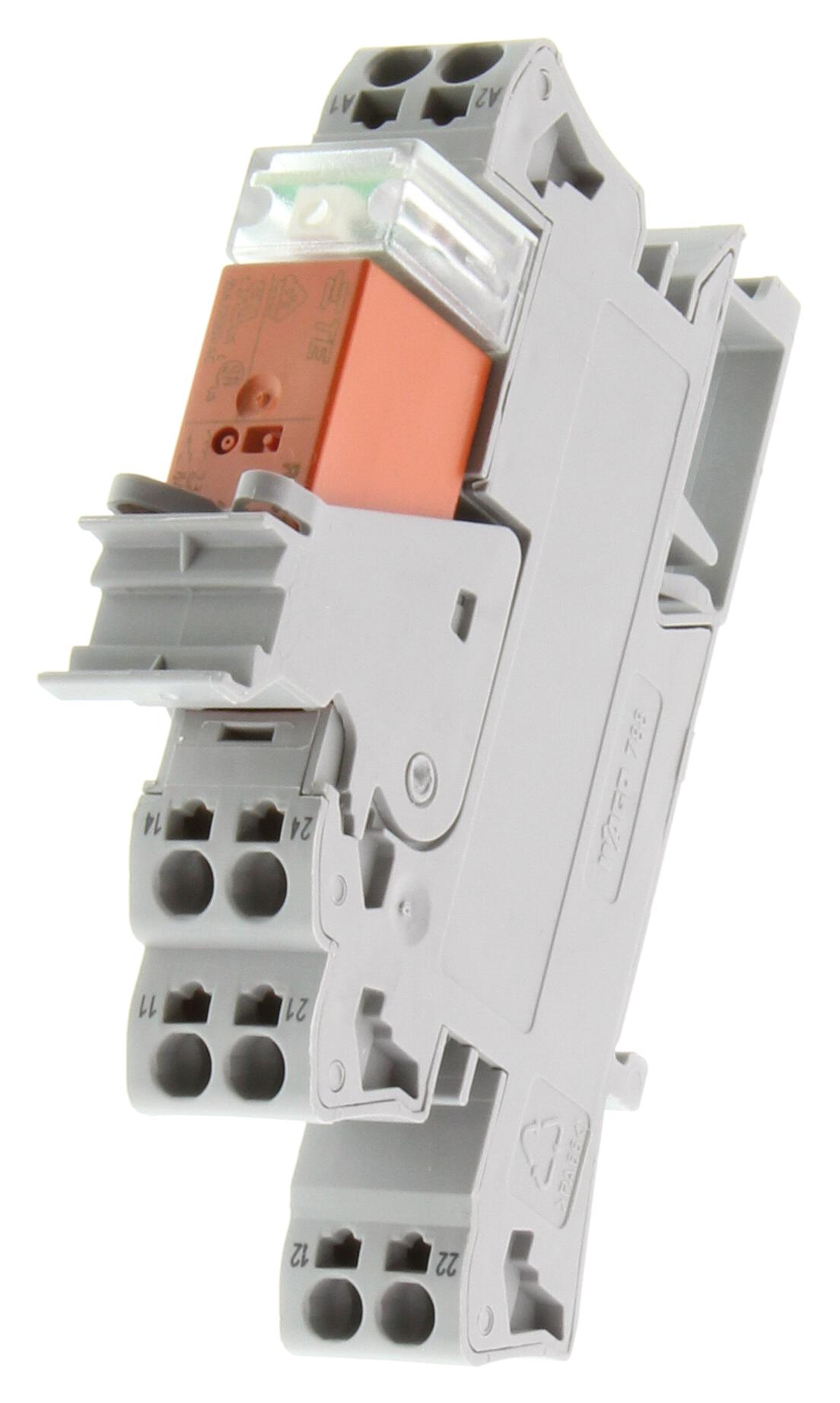

WAGO 788516 230 VAC Relay Module
The WAGO 788-516 relay module is a robust and reliable solution for industrial control applications. Designed for a nominal input voltage of 230 VAC, this module offers two changeover contacts, enabling flexible circuit configurations. It boasts a limiting continuous current of 8A, making it suitable for a wide range of loads. The integrated red status indicator provides clear visual feedback on the relay's operational state. For reinforced insulation requirements or voltages exceeding 250V, a separator plate is required. Effective protection circuits are recommended to dampen inductive loads and protect the relay coils and contacts. This module is ideal for automation systems, machine control, and other industrial environments where reliable switching is essential.
WAGO 788516 230 VAC Relay Module Specifications:
- Nominal input voltage: 230 VAC
- Input voltage range: ±10 %
- Nominal input current at UN: 3,5 mA
- Number of changeover contacts: 2
- Contact material (relay): AgNi 90/10
- Limiting continuous current: 8 A
- Inrush current (resistive) (max.): (AC) 15 A / 4 s
- Switching voltage (max.): AC 250 V
- Switching power (resistive) (max.): AC 2000 VA; DC (see load limit curve)
- Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
- Recommended minimum load: 12 V / 10 mA
- Pull-in time (typ.): 10 ms
- Drop-out time (typ.): 35 ms
- Bounce time (typ.): 10 ms
- Electrical life (NO; resistive load; 23 °C): 10 x 10 switching operations
- Mechanical life: 30 x 10 switching operations
- Switching frequency with/without load (max.): 6 min / 1200 min
- Status indicator: Red LED
- Rated voltage: 250 V
- Rated surge voltage: 4 kV
- Pollution degree: 3
- Dielectric strength, control/load circuit (AC, 1 min): 5 kVrms
- Dielectric strength, open contact (AC, 1 min): 1 kVrms
- Dielectric strength, load/load circuit (AC, 1 min): 2,5 kVrms
- Protection type: IP20
- Connection technology: Push-in CAGE CLAMP®
- Solid conductor: 0,34 … 2,5 mm² / 22 … 14 AWG
- Fine-stranded conductor: 0,34 … 2,5 mm² / 22 … 14 AWG
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- Width: 15 mm
- Height from upper-edge of DIN-rail: 54 mm
- Depth: 86 mm
- Surrounding air temperature (operation at UN): -40 … 70 °C
- Surrounding air temperature (storage): -40 … 70 °C
- Processing temperature: -25 … +50 °C
- Standards and specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508
