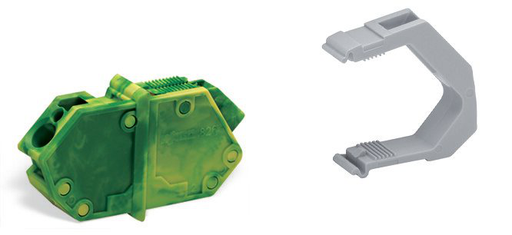

WAGO 826161000016 Feedthrough Terminal Block
The WAGO 826-161/000-016 feedthrough terminal block is designed for reliable power distribution in industrial applications. Its CAGE CLAMP® connection system simplifies installation and ensures a secure connection. The block provides direct ground contact for enhanced safety and test ports for easy troubleshooting. It is suitable for use in neutral-grounded, three-phase, 4-wire systems and offers a wide range of approvals for various applications.
WAGO 826161000016 Feedthrough Terminal Block Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 6 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 32 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 150 V
- Rated current UL (Use Group C): 20 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 20 A
- Rated voltage CSA (Use Group C): 150 V
- Rated current CSA (Use Group C): 20 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 2.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm²
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- No. of poles: 1
- Total number of connection points: 2
- Total number of potentials: 1
- Number of connection types: 2
- Number of levels: 1
- Pin spacing: 7 mm / 0.276 inch
- Width: 7 mm / 0.276 inch
- Height: 23.55 mm / 0.927 inch
- Depth: 42.5 mm / 1.673 inch
- Mounting type: Locking claw
- Type of mounting: Feed-through mounting
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.123 MJ
- Weight: 6.7 g
- Limit temperature range: -60 … +105 °C
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918546270
- Customs Tariff No.: 85369010000
