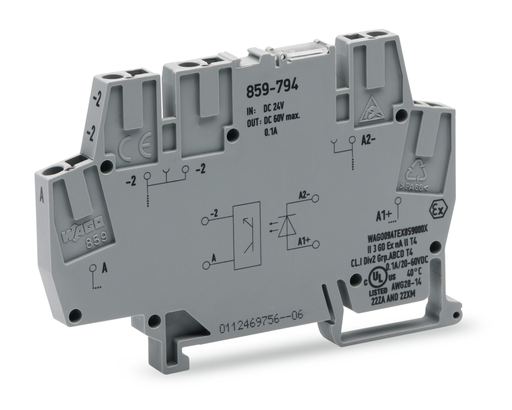

WAGO 859794 Optocoupler Module
The WAGO 859-794 optocoupler module provides electrical isolation between control and load circuits, making it suitable for a wide range of industrial applications, including signal processing networks. It offers a 24VDC nominal input voltage with a wide input voltage range, and a limiting continuous current of 0.1A. The module's compact design (6mm width) and CAGE CLAMP® connection technology simplify installation and maintenance. Its robust construction and adherence to industry standards (EN 60664-1, UL 508) ensure reliable performance in demanding environments.
WAGO 859794 Optocoupler Module Specifications:
- Nominal input voltage: 24 VDC
- Input voltage range (low level): DC 0 … 5 V
- Input voltage range (high level): DC 16 … 30 V
- Nominal input current at UN: 4.2 mA
- Circuit type: 2-conductor termination
- Limiting continuous current: 0.1 A
- Output voltage range: DC 9 … 60 V
- Max. voltage drop at output: ≤ DC 2 V
- Leakage current at nominal voltage: ≤ 25 µA
- Turn-on time: ≤ 20 µs
- Drop-out time: ≤ 120 µs
- Switching frequency: ≤ 1.5 kHz
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Width: 6 mm / 0.236 inch
- Height from upper-edge of DIN-35 rail: 56 mm / 2.205 inch
- Depth: 91 mm / 3.583 inch
- Mounting type: DIN-35 rail
- Color: gray
- Fire load: 0.478 MJ
- Weight: 18.4 g
- Surrounding air (operating) temperature at UN: -40 … 70 °C
- Surrounding air (storage) temperature: -40 … 70 °C
- Processing temperature: -25 … +50 °C
- Standards/specifications: EN 60664-1; EN 61000-6-2; EN 61000-6-3; EN 50121-3-2; EN 61373; UL 508
- GTIN: 4055143606325
- Customs Tariff No.: 85365005000
