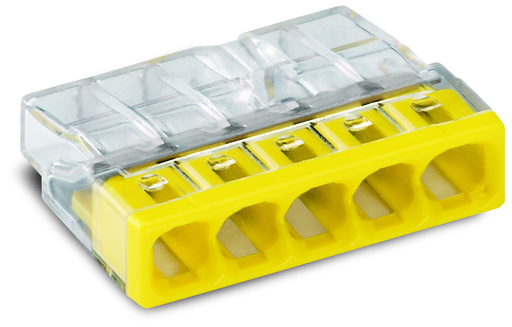

WAGO 2273205 Compact Splicing Connector
The WAGO 2273-205 compact splicing connector provides a convenient and efficient solution for connecting solid conductors. Its compact design allows for easy wiring, while the push-in termination simplifies the process. The transparent housing enables visual confirmation of proper conductor insertion, ensuring reliable connections. Suitable for various industrial applications where compact and reliable splicing is required, it supports conductors ranging from 0.5 to 2.5 mm². For aluminum conductors, the use of WAGO’s “Alu-Plus” contact paste is recommended to prevent oxidation and ensure long-term protection.
WAGO 2273205 Compact Splicing Connector Specifications:
- Rated voltage (II / 2): 450 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 24 A
- Connection technology: PUSH WIRE®
- Actuation type: Push-in
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
- Strip length: 11 mm / 0.43 inch
- Total number of connection points: 5
- Total number of potentials: 1
- Width: 22 mm / 0.866 inch
- Height: 5.8 mm / 0.228 inch
- Depth: 16.7 mm / 0.657 inch
- Color: yellow
- Cover color: yellow
- Flammability class per UL94: V2
- Fire load: 0.03 MJ
- Weight: 1.6 g
- Surrounding air (operating) temperature: 60 °C
- Continuous operating temperature: 105 °C
- T-Marking per EN 60998: T60
- Product Group: 7 (Push Wire Conn.)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821027874
- Customs Tariff No.: 85369010000
