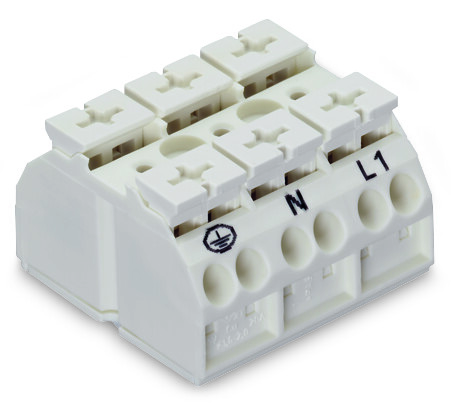

WAGO 8621603 4-conductor Terminal Strip
The WAGO 862-1603 is a robust and reliable 4-conductor chassis-mount terminal strip, ideal for a wide range of industrial applications requiring secure and organized wiring. This terminal strip features a 3-pole PE-N-L1 configuration, providing a clear and standardized connection layout. The push-in CAGE CLAMP connection technology simplifies installation and ensures a gas-tight connection, minimizing the risk of loosening or corrosion. With a rated voltage of 500V and a current rating of 32A, the 862-1603 is suitable for demanding electrical environments. Its chassis-mount design allows for easy integration into control cabinets and other industrial equipment, contributing to a clean and organized workspace. WAGO’s commitment to quality ensures long-lasting performance and reliable operation.
WAGO 8621603 4-conductor Terminal Strip Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 32 A
- Connection technology: Push-in CAGE CLAMP
- Connectable conductor materials: Copper
- Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.5 … 2.5 mm² / 20 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.75 mm² / 18 AWG
- Strip length: 10 … 11 mm / 0.39 … 0.43 inch
- No. of poles: 3
- Total number of connection points: 12
- Total number of potentials: 3
- Type of wiring: Side-entry wiring
- Pin spacing: 12 mm / 0.472 inch
- Width: 36 mm / 1.417 inch
- Height from the surface: 22.3 mm / 0.878 inch
- Depth: 35 mm / 1.378 inch
- Mounting type: Screw mounting
- Marking: PE-N-L1
- Color: white
- Fire load: 0.389 MJ
- Weight: 20.6 g
- Packaging type: bag
- Country of origin: DE
- GTIN: 4044918509664
- Customs Tariff No.: 85369010000
