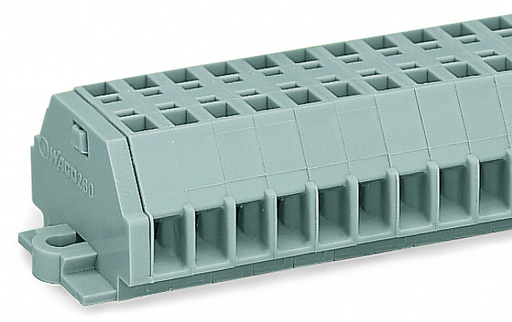

WAGO 260108 8-Pole Terminal Strip
The WAGO 260-108 terminal strip provides a reliable and efficient solution for connecting multiple conductors in industrial environments. Featuring WAGO’s innovative CAGE CLAMP® connection technology, it ensures a secure and vibration-resistant connection for solid and stranded conductors ranging from 0.08 to 1.5 mm². Designed with a horizontal type layout and fixing flanges for secure mounting, this terminal strip is ideal for applications requiring organized and dependable power distribution. Its robust construction and compliance with IEC/EN 60664-1 standards guarantee long-lasting performance and safety.
WAGO 260108 8-Pole Terminal Strip Specifications:
- Nominal Voltage (III/3): 400 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 18 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-Stranded Conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pole No.: 8
- Total Number of Connection Points: 16
- Total Number of Potentials: 8
- Number of Levels: 1
- Wiring Type: Side-entry wiring
- Width: 54.5 mm / 2.146 inch
- Height from the Surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
- Module Width: 5 mm / 0.197 inch
- Design: horizontal type
- Mounting Type: Mounting flange
- Marking Level: Side marking
- Color: gray
- Fire Load: 0.283 MJ
- Weight: 13.8 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918598835
- Customs Tariff Number: 85369010000
