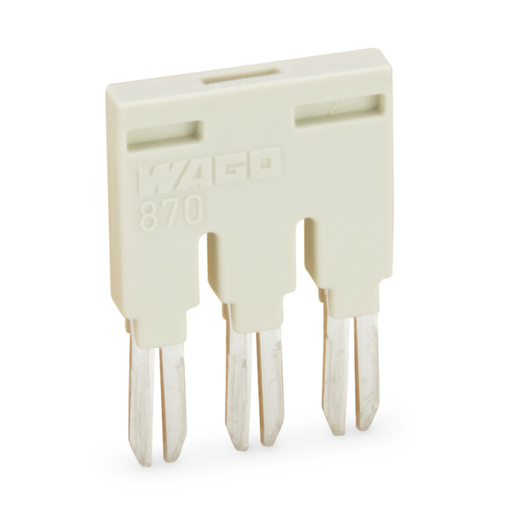

WAGO 870403 Insulated Jumper Bar
The 870-403 is a 3-position light gray insulated push-in jumper bar ideal for connecting through or ground conductors and double potential terminal blocks in industrial settings. Crafted from durable insulation material, it supports a nominal current of 18A with compliance to IEC/EN 60664-1 standards. Its compact design measures 14mm width and 2.5mm depth, ensuring reliable connectivity. Suitable for electrical systems requiring secure, quick assembly with push-in operation, it conforms to RoHS and has approvals for safe, efficient industrial wiring applications.
WAGO 870403 Insulated Jumper Bar Specifications:
- Rated Current: 18A
- Nominal current: 18A
- Width: 14mm / 0.551 inch
- Depth: 2.5mm / 0.098 inch
- Color: Light gray
- Material: Insulated plastic
- Fire Load: 0.016 MJ
- Weight: 1.39g
- Compliance: IEC/EN 60664-1, RoHS
- Approvals: Ex
- Suitable for through or ground conductors
- Push-in type for easy assembly
- Operates with multi-position configurations
- Dimensions optimized for industrial terminal blocks
Buy the WAGO 870-403 – Reliable Industrial Connecting Jumpers for Ground and Conductors
Order the WAGO 870-403 insulated jumper bar online today for quick, secure connections in industrial wiring. Designed for grounding and multi-conductor applications, it supports 18A current and features a robust insulating structure. Its compact size and push-in connection method simplify installation, ensuring reliable performance and safety in demanding environments. Perfect for automation, control panels, and distribution blocks, this jumper bar enhances efficiency and provides durable, hassle-free electrical connections for professional industrial wiring projects.
Get WAGO 870-403 today—built for secure and efficient industrial conductor connections with quick push-in operation.
Frequently Asked Questions
Where can I buy WAGO 870403?
You can click on the BUY or RFQ button to purchase 870403 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 870403?
You can download the 870403 datasheet or visit the WAGO website for support.
Who is the manufacturer of 870403?
WAGO
