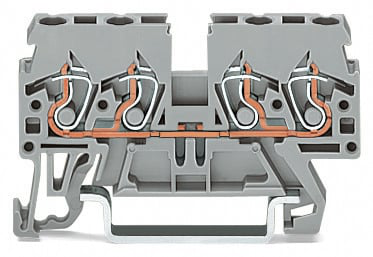

WAGO 870831 4-conductor Terminal Block
The WAGO 870-831 is a robust and reliable 4-conductor through terminal block ideal for various industrial applications. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it utilizes the innovative CAGE CLAMP® connection technology, ensuring secure and vibration-resistant connections. This terminal block is suitable for use in control cabinets, power distribution systems, and automation equipment where reliable and efficient power distribution is critical. It supports a wide range of conductor sizes and materials, making it versatile for different wiring needs. The gray polyamide 66 (PA 66) housing provides excellent insulation and durability.
WAGO 870831 4-conductor Terminal Block Specifications:
- Rated Voltage (III / 3): 500 V
- Rated Impulse Voltage (III / 3): 6 kV
- Rated Current: 24 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip Length: 6 … 7 mm / 0.24 … 0.28 inch
- Total Number of Connection Points: 4
- Total Number of Potentials: 1
- Number of Levels: 1
- Type of Wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from Upper-Edge of DIN-35 Rail: 27.5 mm / 1.083 inch
- Depth: 55 mm / 2.165 inch
- Design: horizontal
- Type of Mounting: DIN-35 rail
- Marking Level: Side marking
- Color: gray
- Insulating Material: Polyamide 66 (PA 66)
- Fire Load: 0.118 MJ
- Weight: 7.3 g
- Product Group: 16 (Rail Mounted Terminal Block with CCC)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4045454094621
- Customs Tariff No.: 85369010000
- Max Insulation Diameter: 4.4mm
Buy the 870-831 WAGO 4-conductor Terminal Block | myMectronic
Purchase the WAGO 870-831 terminal block securely and efficiently online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 870831?
You can click on the BUY or RFQ button to purchase 870831 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 870831?
You can download the 870831 datasheet or visit the WAGO website for support.
Who is the manufacturer of 870831?
WAGO
