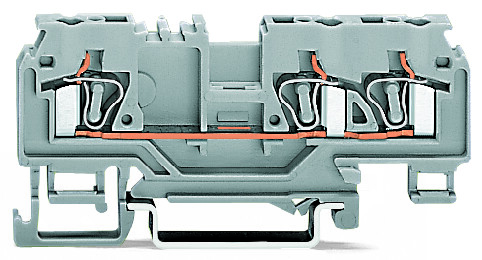

WAGO 880681 3-Conductor Terminal Block
The WAGO 880-681 is a versatile 3-conductor through terminal block suitable for a wide range of industrial applications. Its CAGE CLAMP® connection technology ensures reliable and vibration-resistant connections. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block offers a compact and efficient solution for power distribution and signal routing in control cabinets and automation systems. The integrated test port simplifies troubleshooting and maintenance.
WAGO 880681 3-Conductor Terminal Block Specifications:
- Rated Voltage (III/3): 800 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Current: 25 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor Size: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 4 mm² / 28 … 12 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Number of Connection Points: 3
- Number of Potentials: 1
- Number of Levels: 1
- Width: 5 mm / 0.197 inch
- Height: 73 mm / 2.874 inch
- Depth from Upper Edge of DIN-Rail: 29 mm / 1.142 inch
- Design: horizontal type
- Mounting Type: DIN-35 rail
- Marking Level: Center marking
- Insulation Material: Polyamide (PA66)
- Flammability Class per UL94: V0
- Fire Load: 0.147 MJ
- Weight: 8.7 g
- Country of Origin: PL
- GTIN: 4044918519922
- Customs Tariff Number: 85369010000
- Color: gray
Buy the 880-681 WAGO 3-Conductor Terminal Block | myMectronic
Purchase the WAGO 880-681 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 880681?
You can click on the BUY or RFQ button to purchase 880681 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 880681?
You can download the 880681 datasheet or visit the WAGO website for support.
Who is the manufacturer of 880681?
WAGO
