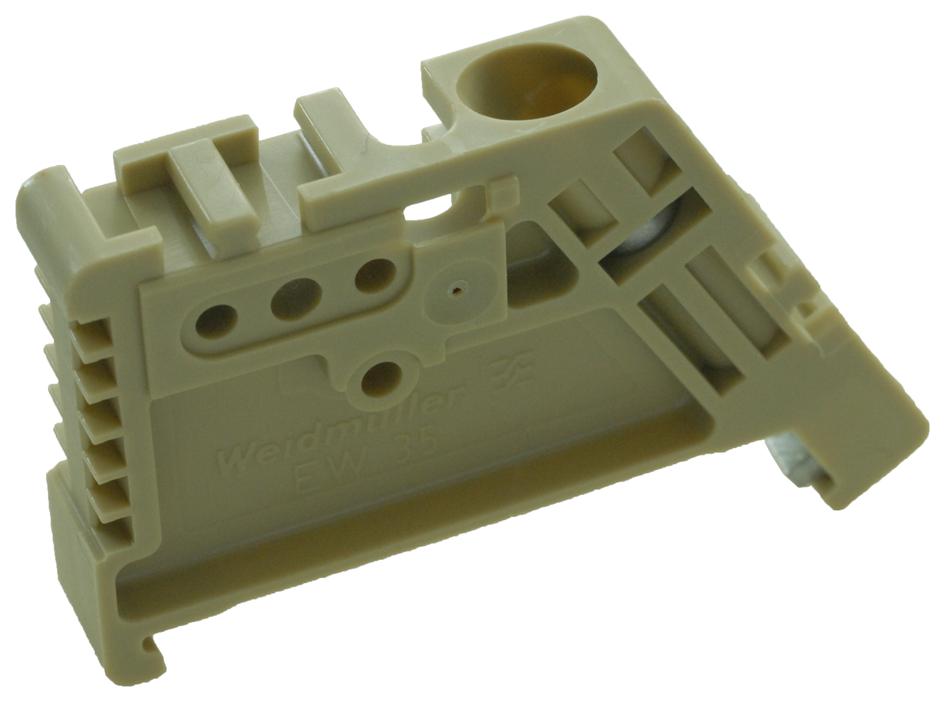

WEIDMULLER 0383560000 Terminal Accessories End Bracket
The Weidmuller EW 35 end bracket is a crucial accessory for terminal blocks, enhancing their reliability and versatility. Designed with clamping yoke technology, it simplifies planning and optimizes operational safety. Constructed from Wemid material with a V-2 flammability rating, it offers durability and safety. This end bracket is ideal for applications requiring secure and organized terminal block connections, contributing to overall system efficiency and reliability. It is suitable for direct mounting and screw fixing, offering flexibility in installation.
WEIDMULLER 0383560000 Terminal Accessories End Bracket Specifications:
- Type: Accessories, End bracket
- Order No.: 0383560000
- Version: Accessories, End bracket
- GTIN(EAN): 4008190181314
- Quantity: 50 pc(s).
- Width: 8.5 mm
- Height: 46 mm
- Depth: 27 mm
- Net weight: 5.32 g
- Width(inches): 0.335 inch
- Height(inches): 1.811 inch
- Depth(inches): 1.063 inch
- Continuous operating temp., min.: -50 °C
- Continuous operating temp., max.: 100 °C
- Material: Wemid
- UL 94 flammability rating: V-2
- Colour: beige
- Rail: TS 35
- Installation advice: Direct mounting
- Type of mounting: when screwed in
- Interlock: for screw fixing
- Tightening torque, max.: 0.6 Nm
- Tightening torque, min.: 0.5 Nm
- TS 35 offset: 22.5 mm
- ETIM 6.0: EC001041
- eClass 9.0: 27-14-11-35
- eClass 10.0: 27-14-11-35
- ETIM 7.0: EC001041
- eClass 9.1: 27-14-11-35
- UNSPSC: 30-21-18-01
- ROHS: Conform
