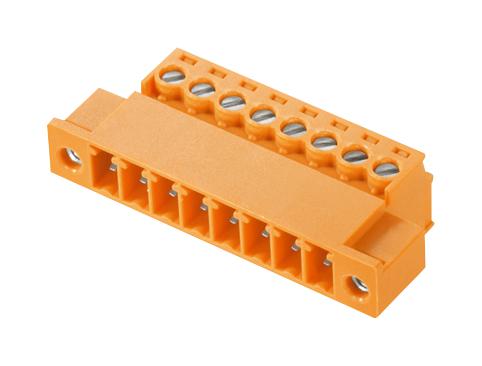

WEIDMULLER 1970990000 Wire Connector
The Weidmüller SCZ 3.81/09/180F SN OR BX is an inverted pin plug with clamping-yoke screw connection designed for straight wire connections in 3.81 mm pitch. Suitable for wire-to-wire or as a mating plug for PCB socket blocks, it features space for labelling, multiple versions, and a max clamping range of 1.5 mm. It supports safe, finger-touch protection compatible with DIN VDE standards, rated for up to 320 V and 17.5 A. The robust orange PA GF insulation ensures durability in industrial applications, with a minimum stripping length of 7mm for secure wire termination.
WEIDMULLER 1970990000 Wire Connector Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of Poles: 9
- Rated Voltage: 320 V
- Rated Current: 17.5 A
- Clamping Range: 0.08 - 1.5 mm
- Wire Cross-Section: AWG 28 - AWG 16
- Material: Insulating PA GF, Orange
- Flammability Rating: UL 94 V-0
- Max. Operating Temperature: 120°C
- Tightening Torque: 0.2 - 0.3 Nm
- Torsion: 25 plug cycles
- Protection Class: IP 20
- Conductor Types: Solid, Flexible, with ferrules
- Certification: UL, CSA, RoHS
Buy the Weidmüller Series BC/SC Wire Connector: 1970990000
Purchase the Weidmüller wire connector online today and experience reliable, high-quality connections for your industrial projects. Designed with a durable orange insulation and rated for up to 320 V and 17.5 A, this connector offers excellent safety features, including finger protection and secure screw clamp termination. Its compact design fits PCB applications or wire-to-wire setups, supporting AWG 28 to AWG 16 cables. With labelling space and multiple mounting options, it provides flexibility for various industrial wiring needs. Easy to install with a minimum of 7mm stripping length, ensuring efficient, secure connections for your automation or control systems.
Get Weidmüller 1970990000 today—built for precise wire connections and long-lasting industrial durability.
Frequently Asked Questions
Where can I buy WEIDMULLER 1970990000?
You can click on the BUY or RFQ button to purchase 1970990000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1970990000?
You can download the 1970990000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1970990000?
WEIDMULLER
