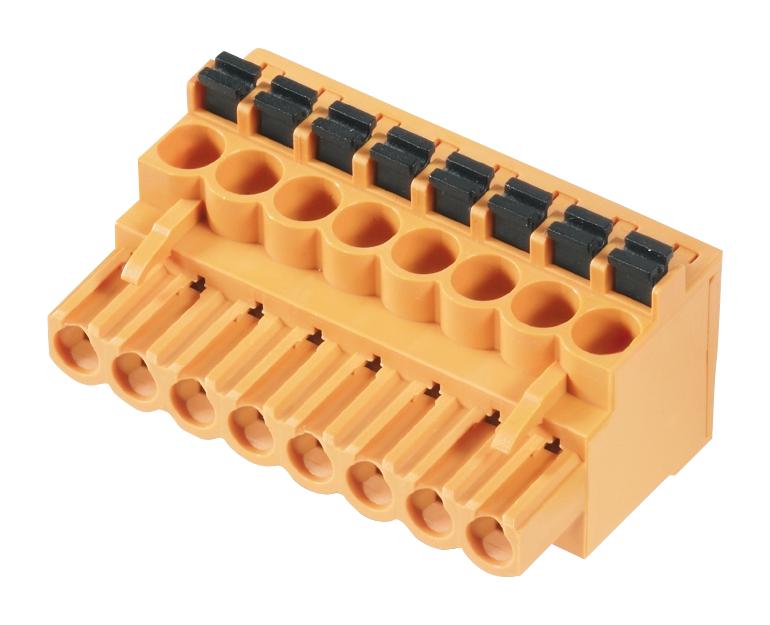

WEIDMULLER 1001530000 Female Connector
The Weidmuller BLF 5.08HC/02/90 SN OR BX is a versatile PCB plug-in connector designed for reliable and efficient wire connections. Its innovative PUSH IN spring connection system simplifies the termination process, eliminating the need for tools. The connector offers flexibility with three wire outlet directions and allows for user-defined locking concepts through flange variations and a patented release latch. Suitable for a wide range of industrial applications, it provides a robust and easy-to-use solution for connecting wires to PCBs.
WEIDMULLER 1001530000 Female Connector Specifications:
- Base Material: PBT
- Color: Orange
- Contact Material: CuSn
- Contact Plating: tinned
- Operating Temperature Max: 100 °C
- Operating Temperature Min: -50 °C
- Storage Temperature Max: 55 °C
- Storage Temperature Min: -25 °C
- Insulation Resistance: ≥ 108Ω
- Flammability Rating: V-0
- Touch Safe: Yes
- Rated Current Max (Tu=20°C): 19 A
- Rated Current Min (Tu=20°C): 24 A
- Rated Voltage (IEC): 400 V
- Impulse Voltage Withstand: 4 kV
- Clamping Range Min: 0.13 mm²
- Clamping Range Max: 3.31 mm²
- Solid Wire Min: 0.2 mm²
- Flexible Wire Max: 2.5 mm²
- Stripping Length: 10 mm
- Push-in Force/Pole: 10 N
- Packaging: Box
