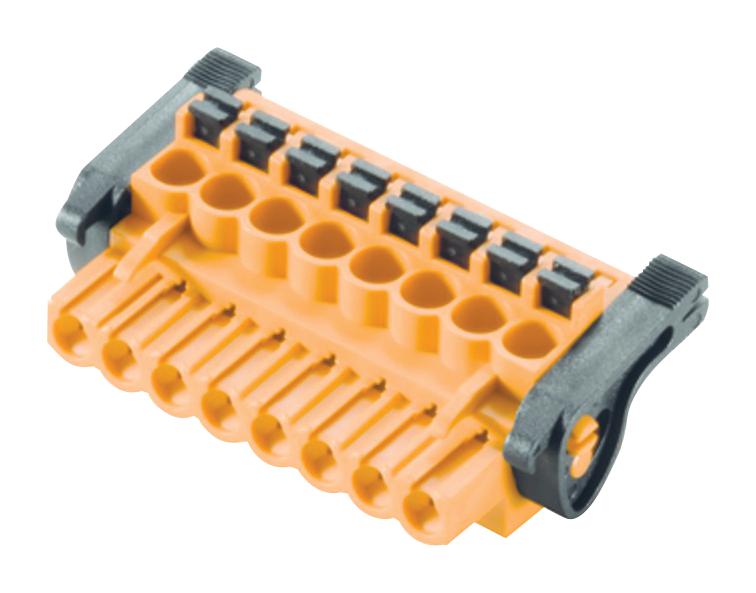

WEIDMULLER 1002310000 Industrial connector
The OMNIMATE Signal BLF 5.08HC push-in connector series offers a reliable, compact, and easy-to-use connection solution for industrial automation and control systems. Featuring innovative push-in spring connection technology, the connector supports tool-free wiring and high current capacity of up to 24 A at 400 V. It provides versatile wiring options with 90° outlet direction, multiple flange variations, and secure locking features. Suitable for PCB and box mounting, this connector ensures efficient, durable, and maintenance-friendly electrical connections in demanding environments.
WEIDMULLER 1002310000 Industrial connector Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of Poles: 5
- Rated Voltage: 400 V
- Rated Current: 24 A (IEC), 18.5 A (UL), 10 A (CSA)
- Clamping Range: 0.13 mm² to 3.31 mm²
- Conductor Cross-Section: AWG 26 to AWG 12
- Contact Material: CuSn, Tinned
- Insulating Material: PBT, RAL 2000 (Orange)
- Flame Rating: UL 94 V0
- Insulation Resistance: 210 MΩ
- Touch Safety: Yes, DIN VDE 107-1
- Temperature Range: -30°C to +100°C
- Storage Temperature: -25°C to +55°C
- Pin Spacing: 5.08 mm (0.2 inch)
- Connection Type: Push-in spring system, tool-free
- Number of Wiring Outlets: 3 (tested directions provide flexibility)
- Packaging: Box, 48 pieces
Buy the Buy Weidmueller OMNIMATE Signal Series BLF 5.08HC Part Number 1002310000 Online
Purchase the Weidmueller OMNIMATE Signal series BLF 5.08HC connector online today for efficient, tool-free wiring solutions. Designed with a 5.08 mm pitch and five poles, it features a push-in spring connection for quick installation and secure contact. Suitable for PCB or box mounting, it supports high currents up to 24 A and voltages up to 400 V, making it ideal for industrial automation, control panels, and electrical distribution. Experience durability, versatility, and easy maintenance with this reliable connector—order now for seamless integration.
Get Weidmueller OMNIMATE Signal Series BLF 5.08HC today—built for easy installation, high current capacity, and reliable industrial automation connections.
Frequently Asked Questions
Where can I buy WEIDMULLER 1002310000?
You can click on the BUY or RFQ button to purchase 1002310000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1002310000?
You can download the 1002310000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1002310000?
WEIDMULLER
