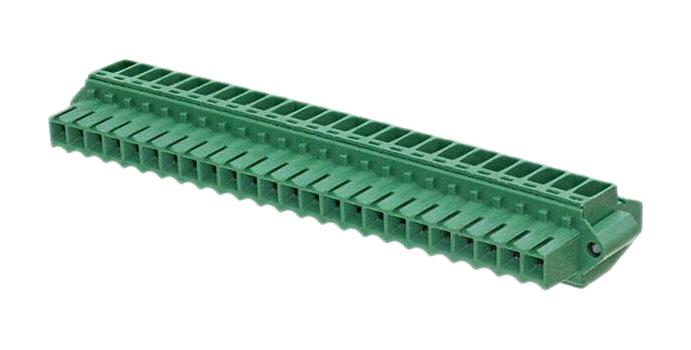

WEIDMULLER 1772980000 Signal Connector

WEIDMULLER 1772980000 Signal Connector Specifications:

• Type: BL 3.50/24/90F SN DKGN BX
• Order No.: 1772980000
• Version: PCB plug-in connector, female plug, 3.50 mm pitch, Number of poles: 24, 90°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
• GTIN(EAN): 4032248136650
• Qty.: 18pc(s).
• Product data: IEC: 320 V / 12 A / 0.2 - 1.5 mm²; UL: 300 V/8 A/AWG 28 - AWG 14
• Packaging: Box
• Width: 91 mm
• Height: 12 mm
• Depth: 22.45 mm
• Net weight: 24.45 g
• Width(inches): 3.583 inch
• Height(inches): 0.472 inch
• Depth(inches): 0.884 inch
• Product family: OMNIMATE Signal - series BL/SL 3.50
• Wire connection method: Clamping yoke connection
• Pitch in inches(P): 0.138 inch
• Number of poles: 24
• L1 in inches: 3.169 inch
• Pin seriesquantity: 1
• Touch-safe protection acc. to DIN VDE: 0470
• Safe from finger touch: Yes
• Volume resistance: ≤ 5mΩ
• Strippinglength: 6 mm
• Tighteningtorque for screw flange,max.: 0.2 Nm
• Tighteningtorque,max.: 0.25 Nm
• Screwdriver blade: 0.4 x 2.5
• Pluggingcycles: 25
• Pulling force/pole, max.: 5 N
• Type of connection: Field connection
• Pitch in mm(P): 3.5 mm
• Conductor outlet direction: 90°
• L1 in mm: 80.5 mm
• Number of rows: 1
• Rated cross-section: 1.5 mm²
• IP rating: IP 20
• Can be coded: Yes
• Tighteningtorque for screw flange,min.: 0.15 Nm
• Tighteningtorque,min.: 0.2 Nm
• Clampingscrew: M 2
• Screwdriver blade standard: DIN 5264
• Pluggingforce/pole,max.: 7 N
• Insulatingmaterial: PBT
• Colour: Signalgreen
• Colour chart(similar): RAL 6032
• Insulatingmaterialgroup: IIIa
• Insulation strength: ≥ 108Ω
• UL 94 flammabilityrating: V-0
• GWFI: 960 °C
• Contact material: Copper alloy
• Contact surface: tinned
• Layer structure ofplugcontact: 4...8µm Sn hot-diptinned
• Storage temperature,min.: -40 °C
• Storage temperature,max.: 70 °C
• Operatingtemperature,min.: -50 °C
• Operatingtemperature,max.: 100 °C
• Temperature range,installation,min.: -30 °C
• Temperature range, installation, max.: 100 °C
• Clampingrange,min.: 0.08 mm²
• Clampingrange,max.: 1.5 mm²
• Wire connection cross section AWG, min.: AWG 28
• Wire connection cross section AWG, max.: AWG 14
• Solid,min. H05(07)V-U: 0.2 mm²
• Solid,max. H05(07)V-U: 1.5 mm²
• Flexible,min. H05(07)V-K: 0.2 mm²
• Flexible,max. H05(07)V-K: 1.5 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.: 0.2 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, max.: 1.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.: 0.2 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.: 1.5 mm²
• Plug gauge in accordance with EN 60999 a x b;ø: 2.4 mm x 1.5 mm
• Rated current, min. number of poles (Tu=20°C): 12 A
• Rated current, max. number of poles (Tu=20°C): N/A
• Rated current, min. number of poles (Tu=40°C): 10 A
• Rated current, max. number of poles (Tu=40°C): N/A
• Rated voltage for surge voltage class / pollution degree II/2: 320 V
• Rated voltage for surge voltage class / pollution degree III/2: N/A
• Rated voltage for surge voltage class / pollution degree III/3: 160 V
• Rated impulse voltage for surge voltage class/ pollution degree II/2: 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2: N/A
• Rated impulse voltage for surge voltage class/ contamination degree III/3: N/A
• Short-time withstand current resistance: 3 x 1s with 100 A
