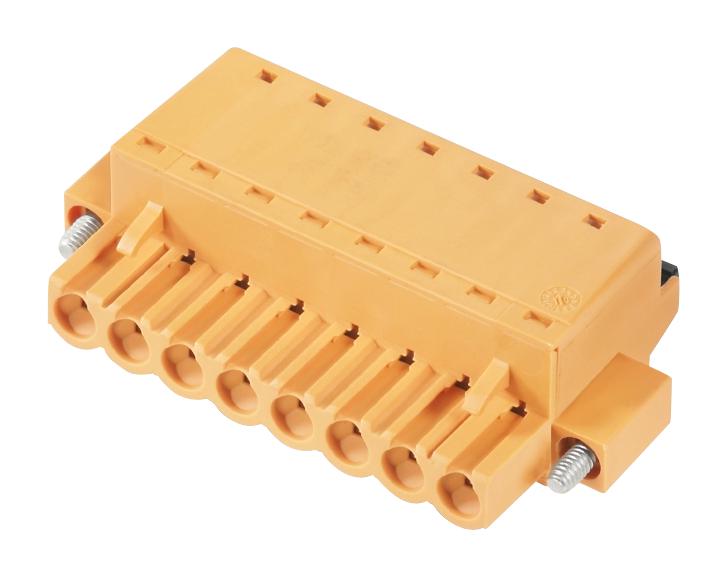

WEIDMULLER 1013140000 Female Connector
The Weidmuller BLF 5.08HC/07/180F SN OR BX is a versatile PCB plug-in connector designed for a wide range of applications. It builds upon the proven BLZP 5.08HC design with an innovative PUSH IN spring connection system, simplifying wire connection. The connector offers flexibility with three wire outlet directions, four flange variations, and a patented release latch for user-defined locking. It is suitable for applications requiring high current capacity and reliable connections, commonly found in industrial control systems, automation equipment, and power distribution panels.
WEIDMULLER 1013140000 Female Connector Specifications:
- Base Material: PBT
- Color: Orange
- Contact Material: CuSn
- Contact Plating: tinned
- Clamping Range Min: 0.13 mm²
- Clamping Range Max: 3.31 mm²
- Wire Size AWG Min: AWG 26
- Wire Size AWG Max: AWG 12
- Pitch: 5.08 mm
- Number of Poles: 7
- Rated Voltage IEC: 400 V
- Rated Current IEC: 24 A
- Rated Voltage CSA: 300 V
- Rated Current CSA: 10 A
- Operating Temperature Max: 100 °C
- Operating Temperature Min: -50 °C
- Stripping Length: 10 mm
- Touch Safe: Safe from finger touch
- Volume Resistance: 4.50 mΩ
- Push-in Force per Pole: 10 N
- Plugging Cycles: 25
Buy the 1013140000 WEIDMULLER Female Connector | myMectronic
Purchase the Weidmuller BLF 5.08HC/07/180F SN OR BX securely and efficiently for your industrial needs.
