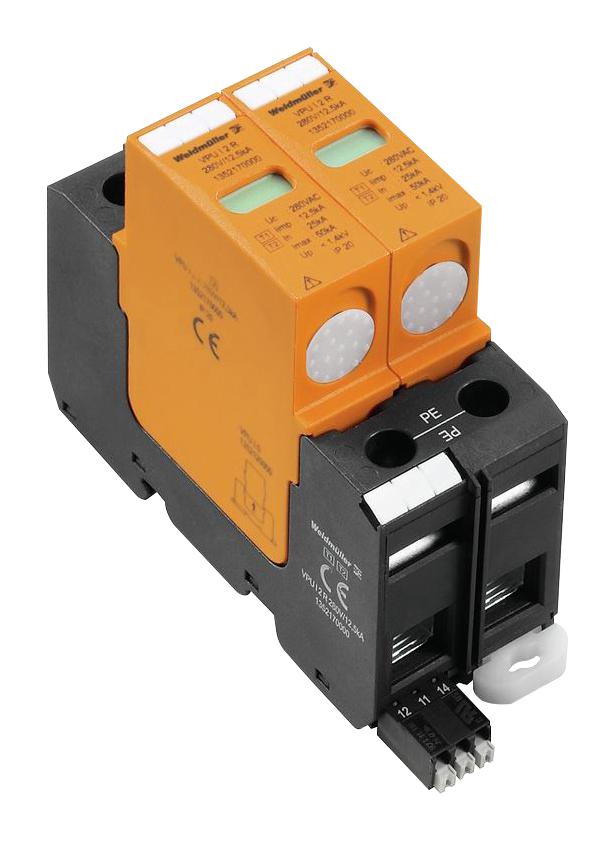

WEIDMULLER 2025030000 VPU II Surge Protection Device

WEIDMULLER 2025030000 VPU II Surge Protection Device Specifications:

• Delivery Status: This article will no longer be available in the future
• Available Until: 2020-05-01
• Type: VPU II 2W+N 120/240V R
• Order No.: 2025030000
• Version: Surge voltage arrester, Low voltage, with remote contact, TN->L-(PE)N, N-PE(U0≤120/240 V)
• GTIN(EAN): 4050118404593
• Quantity: 1pc(s)
• Alternative Product: 2591680000
• Width: 36 mm
• Height: 106 mm
• Depth: 69 mm
• Mounting Dimension - Height: 75 mm
• Width (inches): 1.417 inch
• Height (inches): 4.173 inch
• Depth (inches): 2.717 inch
• Net Weight: 282 g
• Humidity: 5 - 95% rel. humidity
• Operating Temperature, Min: -40 °C
• Storage Temperature, Min: -40 °C
• Storage Temperature: -40 °C...85 °C
• Operating Temperature, Max: 70 °C
• Storage Temperature, Max: 85 °C
• Operating Temperature: -40 °C...70 °C
• Rated Voltage UN: 120 V
• VPR(L/N-PE): 800 V
• SCCR: 200 kA
• Category: SPD TYPE 1CA/2CA
• Continuous Voltage UC, Max: 180 V
• Test Voltage (UL 1449): 240 V
• MCOV(L/N-PE): 180 Vac
• In: 20 kA
• Connection Type: PUSH IN
• Cross-Section for Connected Wire, Solid, Min: 0.14 mm²
• Cross-Section for Connected Wire, Solid, Max: 1.5 mm²
• Stripping Length: 8 mm
• Cross-Section for Connected Wire, Solid, Min (AWG): AWG 25
• Cross-Section for Connected Wire, Solid, Max (AWG): AWG 15
• Color: black,orange
• Optical Function Display: green = OK; red = arrester is defective - replace
• Rail: TS 35
• UL 94 Flammability Rating: V-0
• Design: Installation housing; 2TE, Insta IP 20
• Protection Degree: IP20
• Segment: Power distribution
• Version (Connection): with remote contact
• Pollution Severity: 2
• Surge Voltage Category: III
• Discharge Current Imax(8/20µs) wire-PE: 40 kA
• Follow-On Current Extinguishing Capability Ifi: Not available due for technical reasons
• Low Voltage Network: TN->L-(PE)N, N-PE(U0≤120/240 V)
• Protection Level Upat IN(L/N-PE): ≤ 0.9 kV
• Requirements Class (EN 61643-11): T2
• Short-Circuit Current Rating ISCCR: 25 kA
• Voltage Type: AC
• Discharge Current In(8/20µs) wire-PE: 20 kA
• Fuse: 125 A gL > (if back up fuse > 125 A)
• Max. Continuous Voltage, Uc (AC): 180 V
• Requirements Category (IEC 61643-11): Type II
• Response Time: ≤ 25 ns
• Signalling Contact: 250 V 1A 1CO
• Tightening Torque, Min (Screw Connection): 2 Nm
• Wire Connection Cross Section AWG, Min (Screw Connection): AWG 14
• Wire Cross-Section, Solid, Min (Screw Connection): 4 mm²
• Wire Connection Cross Section, Finely Stranded, Min (Screw Connection): 2.5 mm²
• Conductor Cross-Section, Flexible, AEH (DIN 46228-1), Min (Screw Connection): 2.5 mm²
• Connection Cross-Section, Stranded, Min (Screw Connection): 4 mm²
• Stripping Length (Rated Connection): 15 mm
• Tightening Torque, Max (Screw Connection): 3 Nm
• Wire Connection Cross Section AWG, Max (Screw Connection): AWG 0
• Wire Cross-Section, Solid, Max (Screw Connection): 16 mm²
• Wire Connection Cross Section, Finely Stranded, Max (Screw Connection): 25 mm²
• Conductor Cross-Section, Flexible, AEH (DIN 46228-1), Max (Screw Connection): 25 mm²
• Connection Cross-Section, Stranded, Max (Screw Connection): 50 mm²
