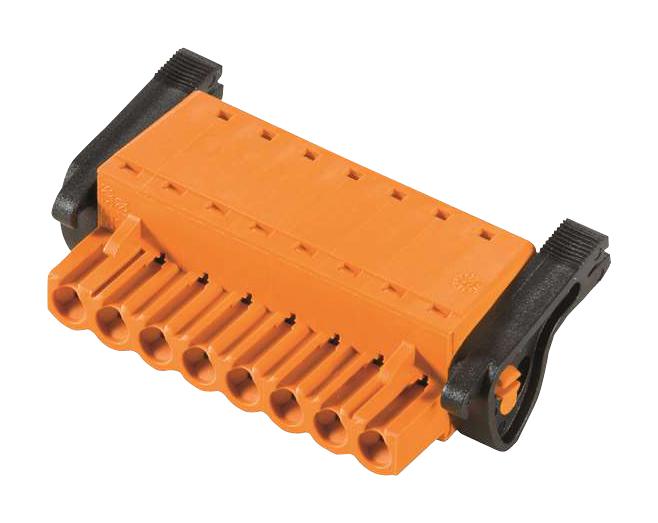

WEIDMULLER 1014370000 Industrial Push-In Connector
The BLF 5.08HC push-in female connector from OMNIMATE Signal series offers a compact, reliable connection for industrial automation and control systems. Featuring innovative push-in spring connection technology, it enables tool-free, quick wire insertion with high current capacity. Designed for versatile applications, it supports 2 poles with a 5.08 mm pitch and up to 3.31 mm conductor clamping range. Certified for safety and durability, its orange PBT insulating material and tin-plated copper contact surface ensure optimum electrical performance in demanding environments. Widely used in control panels, automation, and industrial wiring.
WEIDMULLER 1014370000 Industrial Push-In Connector Specifications:
- Type of connection: PUSH IN
- Pitch: 5.08 mm (0.2 inch)
- No. of poles: 2
- Rated voltage: 400 V / 300 V (UL), 240 V (IEC), 10 A (UL), 24 A (IEC)
- Rated current: 18.5 A (UL), 24 A (IEC)
- Clamping range: min. 0.13 mm, max. 3.31 mm
- Wire cross-section: AWG 26 - AWG 12, solid and flexible wires
- Operating temperature: -60°C to 100°C
- Insulating Material: PBT, orange color
- Contact Material: Copper alloy, tin-plated
- Protection class: IP20
- Number of rows: 1
- Plugging cycles: 25
- Push-in force per pole: 10 N
- Withdrawal force per pole: 8 N
- Flammability rating: UL 94 V0
- Certifications: UL, CSA, RoHS
Buy the Weidmueller 1014370000 – Reliable Push-In Connector for Industrial Applications
Enhance your automation and control panel wiring with the reliable Weidmueller Push-In Connector. Featuring a compact design, high current capacity, and tool-free wire insertion, it simplifies installation and ensures secure connections for industrial environments. Suitable for 2-pole applications, it supports AWG 26 to AWG 12 wires and offers IP20 protection. Ideal for control systems, automation, and manufacturing setups, this certified connector combines durability, safety, and ease of use, making it a must-have for professional electrical installations.
Order your Weidmueller Series BLF 5.08HC/02/180LR SN OR BX today and give your industrial wiring projects the dependable, easy-to-install connection they deserve.
