WEIDMULLER 2473090000 Power Terminal Block
The LLFS series power terminal block is designed for high-current and high-voltage power electronics applications such as solar inverters, frequency converters, and power supplies. These solder pin terminals feature a rugged construction with push-in connection technology, supporting up to IEC 1000 V and 41 A, with a wire range of 0.5 to 6 mm². They offer reliable secure connections, are flammability rated V0, and comply with international safety standards. The compact design ensures easy PCB mounting and high-performance electrical connectivity in demanding industrial environments.
WEIDMULLER 2473090000 Power Terminal Block Specifications:
- Type: LLFS 7.50/11/90V 5.0SN BK BX
- Number of poles: 11
- Width: 83.5 mm
- Height: 30.56 mm
- Depth: 20.05 mm
- Solder pin length: 5 mm
- Material: Insulating Wemid (PA), contact material E-Cu, tinned surface
- Flammability rating: UL 94 V0
- Operating temperature: -40°C to +120°C
- Rated voltage: IEC 1000 V, UL 600 V, CSA 600 V
- Rated current: IEC 41 A, UL 37 A, CSA 37 A
- Wire range: 0.5 to 6 mm² (solid and flexible conductors), AWG 24-8
- Conductor connection: Push-in, no actuator, PCB mount via THT soldering
- Dimensions: 83.5 mm width, 30.56 mm height, 20.05 mm depth
- Insulation: Black, RAL 9011 color
- Maximum clamping range: 6 mm
- Solder eyelet diameter: 2 mm
- Storage temperature: -40°C to +70°C
- Operating temperature: -40°C to +120°C
- Compliance: IEC 60947-7-1, RoHS conform

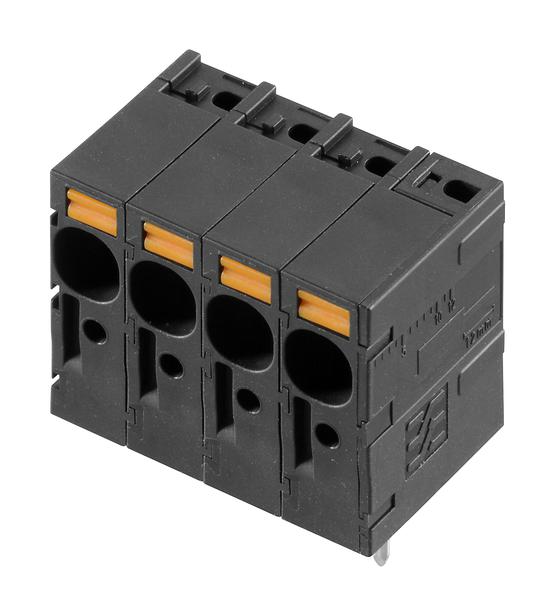

Buy the Buy Weidmüller LLFS Power Terminal Part Number 2473090000 Online
Order the Weidmüller LLFS power terminal block online today for secure, high-current wire connections suitable for power electronics, solar inverters, and frequency converters. This robust terminal features push-in technology, supporting wire ranges from 0.5 to 6 mm², rated up to 1000 V and 41 A for IEC standards. Its compact, PCB-mount design allows easy installation and high-performance electrical connectivity. Perfect for industrial automation, renewable energy systems, and high-voltage power supplies, ensuring safety and durability with UL and IEC compliance.
Get Weidmüller LLFS power terminal today—built for reliable high-current and high-voltage power connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy WEIDMULLER 2473090000?
You can click on the BUY or RFQ button to purchase 2473090000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2473090000?
You can download the 2473090000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2473090000?
WEIDMULLER
