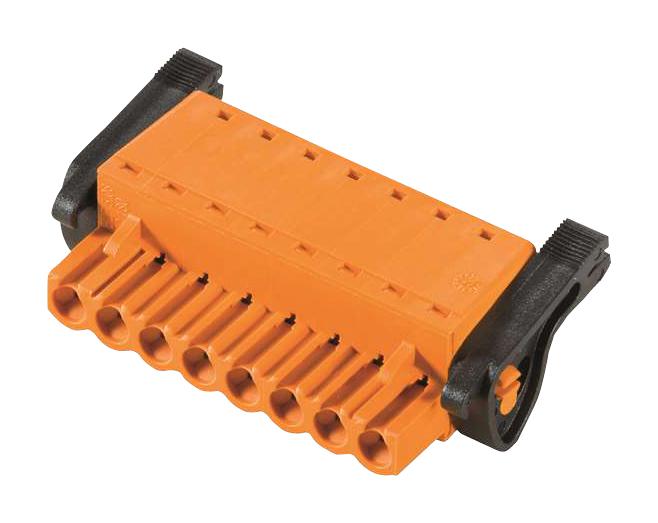

WEIDMULLER 1014470000 High-Current Signal Connector
The Weidmüller BLF 5.08HC push-in female connector offers reliable, tool-free wiring with innovative push-in spring technology. Designed for high current applications, it features a compact, versatile design with multiple outlet directions, flange variations, and a patented release latch for secure locking. With a 6.08 mm pitch and rated for 400V/24A or 300V/10A, it is suitable for diverse electrical systems. Made from durable PBT with tin-plated copper contacts, it ensures high insulation resistance and long-term performance in industrial environments. Ideal for automation, control panels, and wiring automation tasks.
WEIDMULLER 1014470000 High-Current Signal Connector Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of Poles: 11
- Pole Spacing: 50.8 mm (2 inch)
- Rated Voltage: 400 V (IEC), 300 V (UL/CSA)
- Rated Current: 24 A (IEC), 10 A (UL/CSA)
- Clamping Range: 0.13 mm² to 3.31 mm²
- Wire Cross-Section: AWG 26 to AWG 12
- Contact Material: Copper alloy, tin-plated
- Insulating Material: PBT, orange color (RAL 2000)
- Flammability Rating: UL 94 V-0
- Operating Temperature Range: -60°C to 100°C
- Storage Temperature: -25°C to 55°C
- Ingress Protection: IP20
- Screwdriver Size: 0.6 x 3.5 mm
- Max. Wiring Cycles: 25
Buy the Buy Weidmüller Female Connector Part Number 1014470000 Online
Order the Weidmüller 1014470000 high-current push-in female connector online today. Featuring innovative spring connection, compact design, and secure locking, it ensures reliable wire termination for industrial automation, control panels, and wiring automation systems. Made from durable PBT with tin-plated copper contacts, it supports applications up to 400V/24A with easy, tool-free installation. Its versatile outlet directions and flange variations enable flexible configurations. Buy now to enhance your electrical projects with trusted quality and long-lasting performance.
Get Weidmüller 1014470000 today—designed for secure, high-current connections with innovative push-in spring technology for reliable performance.
Frequently Asked Questions
Where can I buy WEIDMULLER 1014470000?
You can click on the BUY or RFQ button to purchase 1014470000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1014470000?
You can download the 1014470000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1014470000?
WEIDMULLER
