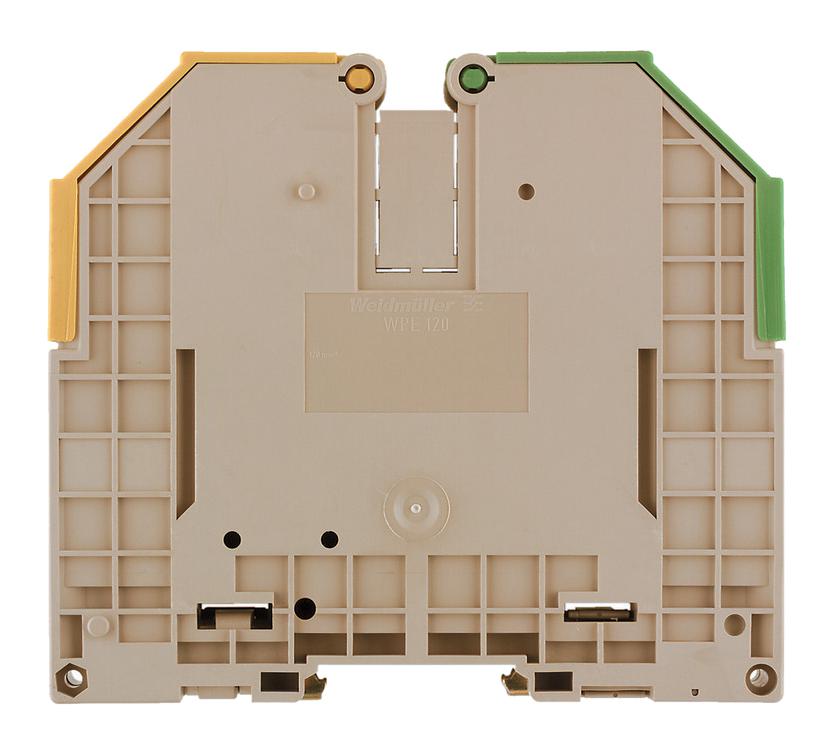

WEIDMULLER 1019700000 Power Feed Terminal Block
The WPE 120/150 is a robust screw connection terminal block designed for secure power feed-in applications in electrical systems. Made from flame-retardant Wemid material with a green/yellow color coding, it supports a maximum wire cross-section of 150 mm² and rated current of 14,400 A. With a compact size of 32 mm width and 132 mm height, it is suitable for industrial environments, offering reliable performance with IECEx, ATEX, UL, and CSA certifications. Its design facilitates easy wiring, ensuring safety and compliance.
WEIDMULLER 1019700000 Power Feed Terminal Block Specifications:
- Dimensions: Width 32mm, Height 132mm, Depth 117mm, including DIN rail 125.5mm
- Material: Wemid, Flame rating UL 94 V-0, Color: Green/yellow
- Operating Temperature Range: -25°C to 55°C, Maximum continuous temperature 130°C
- Rated Current: 14,400 A, Max Wire Cross-Section: 150 mm²
- Voltage Rating: 1000 V to adjoining terminal, IECEx, ATEX, UL, CSA certifications
- Connection: Screw connection, M10 clamp screw, Finely stranded wire, Wire range min 35mm, max 150mm
- Clamp Torque: Min 10 Nm, Max 20 Nm, Stripping length 35mm
- Standards Compliance: IEC 60947-7-x, UL 60093, CSA 12400-382
- Approvals: IECEx, ATEX, UL, CSA, RoHS compliant
Buy the Weidmiiller Series WPE Power Feed Terminal: 1019700000
Secure your electrical installations with the Weidmiiller Power Feed Terminal Block. Designed for high-current applications up to 150 mm², it features easy wiring, robust construction, and multiple safety certifications including IECEx, ATEX, UL, and CSA. Its compact size and high-quality materials ensure durability and space efficiency. Perfect for industrial environments, it provides reliable connections and long-term performance, making it the ideal choice for professional electric systems. Order online now to ensure quick, safe, and dependable power distribution for your projects.
Buy Weidmiiller WPE 120/150 power feed terminal block now and experience reliable high-current performance in industrial power distribution.
Frequently Asked Questions
Where can I buy WEIDMULLER 1019700000?
You can click on the BUY or RFQ button to purchase 1019700000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1019700000?
You can download the 1019700000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1019700000?
WEIDMULLER
