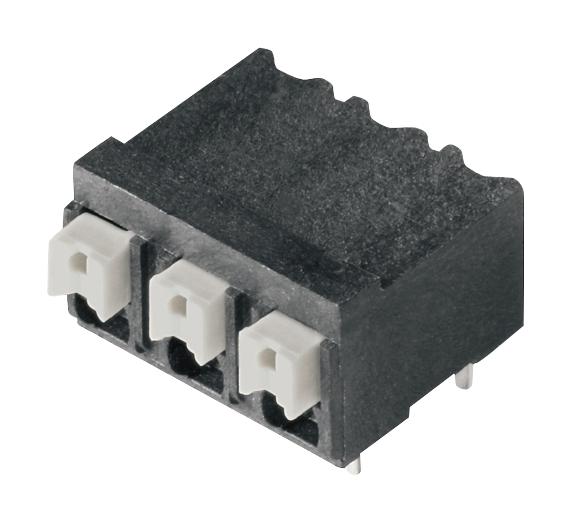

WEIDMULLER 1824860000 SMT PCB Terminal Block
The Weidmuller LSF-SMT 5.08/07/90 3.5SN BK TU is a versatile PCB terminal block ideal for automated reflow soldering processes. Its push-in conductor connection system simplifies assembly, while the 90-degree angled design optimizes space utilization. With a robust construction and ratings of 500V and 17.5A, this terminal block is suitable for a wide range of industrial applications, including power supplies, automation systems, and control panels. The black housing and optimized solder pin length contribute to reliable and efficient connections.
WEIDMULLER 1824860000 SMT PCB Terminal Block Specifications:
- Base Material: Copper Alloy
- Insulating Material: LCP GF
- Color: Black
- Pitch: 5.08 mm
- Number of Poles: 7
- Solder Pin Length: 3.5 mm
- Solder Pin Dimensions: 0.35 x 0.8 mm
- Solder Eyelet Hole Diameter: 1.1 mm
- Clamping Range Min: 0.13 mm²
- Clamping Range Max: 1.5 mm²
- Wire Connection Cross Section AWG Min: 28 AWG
- Wire Connection Cross Section AWG Max: 14 AWG
- Rated Voltage IEC: 500 V
- Rated Current IEC: 17.5 A
- Rated Voltage UL: 300 V
- Rated Current UL: 12 A
- Flammability Rating: V-0
- Operating Temperature Max: 120 °C
- Storage Temperature Max: 55 °C
- Touch-Safe Protection: DIN VDE 57 106
