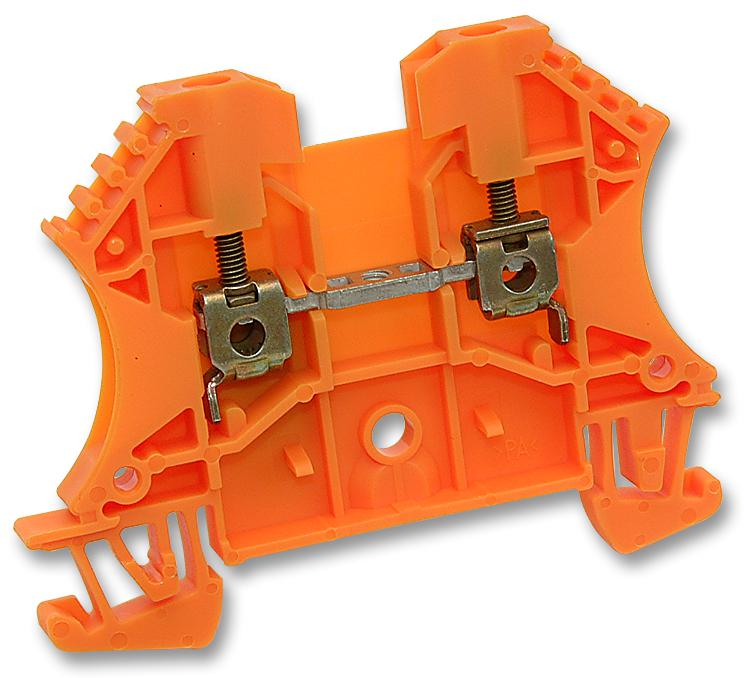

WEIDMULLER 102006WDU25ORANGE Feed-through Terminal Block
The Weidmüller WDU 2.5 ORANGE terminal block provides a high-reliability connection solution for a wide range of industrial applications. Its clamping yoke technology simplifies planning and enhances operational safety. The block features a screw connection suitable for wires up to 2.5 mm², with a voltage rating of 800 V and a current rating of 24 A. Constructed from Wemid material with a V-2 flammability rating, it offers durability and safety. It is mounted on a TS 35 rail and is suitable for applications requiring a single potential connection. The orange color provides easy identification in complex systems.
WEIDMULLER 102006WDU25ORANGE Feed-through Terminal Block Specifications:
- Type: Feed-through terminal, Screw connection
- Order No.: 1020060000
- Version: Feed-through terminal, Screw connection, 2.5 mm²
- Rated Voltage: 800 V
- Rated Current: 24 A
- Color: Orange
- Width: 5.1 mm
- Height: 60 mm
- Depth: 46.5 mm
- Weight: 8.62 g
- Continuous Operating Temp. Min: -60 °C
- Continuous Operating Temp. Max: 130 °C
- Material: Wemid
- Flammability Rating: V-2
- ATEX Certificate No.: DEMKO14ATEX1338U
- Max. Voltage (ATEX): 690 V
- Wire Cross Section Max. (ATEX): 2.5 mm²
- IECEX Current: 24 A
- IECEX Voltage: 690 V
- IECEX Wire Cross Section Max.: 2.5 mm²
- Tightening Torque (Clamping Screw for Copper Conductors): 0.4...0.8 Nm
- Number of Potentials: 1
- Number of Clamping Points per Level: 2
- Mounting Rail: TS 35
- PE Function: No
- Explosion-tested version: Yes
- Number of Similar Terminals: 1
- Type of Mounting: Snap-on
- CSA Voltage Size C: 600 V
- CSA Current Size C: 20 A
- CSA Wire Cross Section Min: 26 AWG
- CSA Wire Cross Section Max: 12 AWG
- Rated Cross-section: 2.5 mm²
- Volume Resistance: 1.33 mΩ
