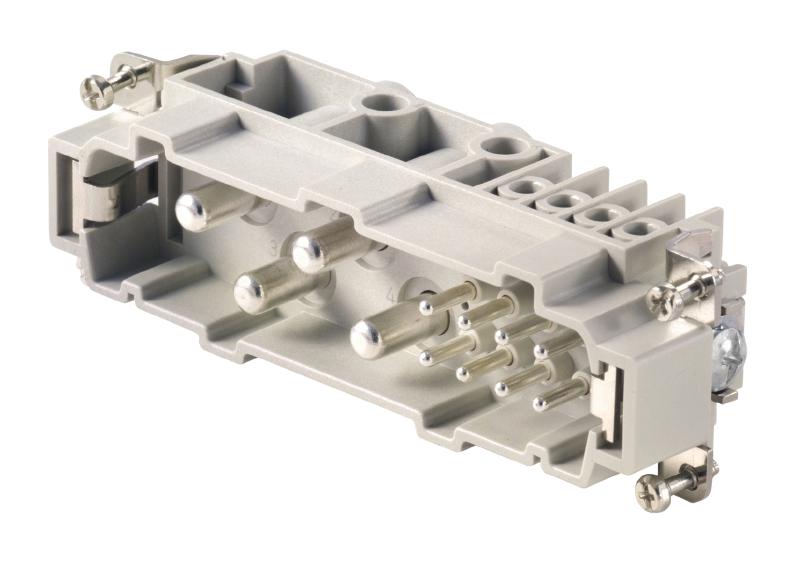

WEIDMULLER 1023260000 industrial connector
The HDC S4/8 MS insert is a versatile industrial connector designed for high-current and voltage transmission, featuring a screw connection for reliable wiring. It supports 12 poles with 4 power contacts rated at 80A and 8 signal contacts rated at 16A, suitable for demanding industrial automation and electrical systems. The connector's robust construction includes a silver passivated copper alloy surface, UL 94 V0 flammability rating, and an insulation material of PC glass fiber reinforced, capable of withstanding temperatures from 40°C to 125°C. It ensures secure, long-lasting connections with up to 500 plugging cycles and complies with environmental standards such as REACH and RoHS.
WEIDMULLER 1023260000 industrial connector Specifications:
- Poles: 12, including 4 power contacts and 8 signal contacts
- Power Contact Rating: 80A, Rated Voltage: 400V, Impulse Voltage: 6kV
- Signal Contacts: 8, Rated Current: 16A, Rated Voltage: 400V, Impulse Voltage: 6kV
- Physical Dimensions: Width 34mm, Height 42mm, Depth 111mm, Net weight 1419g
- Insulating Material: PC glass fiber reinforced, UL Listed and railway-certified
- Surface Finish: Silver passivated
- Connection: Screw connection, M5 fixing screw, stripping length: 15mm
- Wire Cross Section: Max. 16mm², AWG 6, Min. 0.5mm², AWG 20
- Temperature Range: -40°C to +125°C, Environmental Compliance: REACH, RoHS
- Certifications: UL, CSA, RoHS, REACH
Buy the Weidmueller HDC S4/8 MS – Reliable Industrial Connector for Electrical Applications
Purchase the Weidmueller HDC S4/8 MS connector online today to ensure reliable connections in your industrial electrical systems. Featuring 12 poles with robust screw connections, rated at 80A for power and 16A for signals, it’s ideal for demanding environments. Its durable construction with silver passivated copper alloy surfaces and UL 94 V0 flammability rating guarantees safety and longevity. Simplify your installation process with a compact design, easy wiring, and compliance with environmental standards such as REACH and RoHS. Order now for proven quality and long-lasting performance.
Get Weidmueller HDC S4/8 MS today—built for high-current transmission and durable industrial use.
Frequently Asked Questions
Where can I buy WEIDMULLER 1023260000?
You can click on the BUY or RFQ button to purchase 1023260000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1023260000?
You can download the 1023260000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1023260000?
WEIDMULLER
