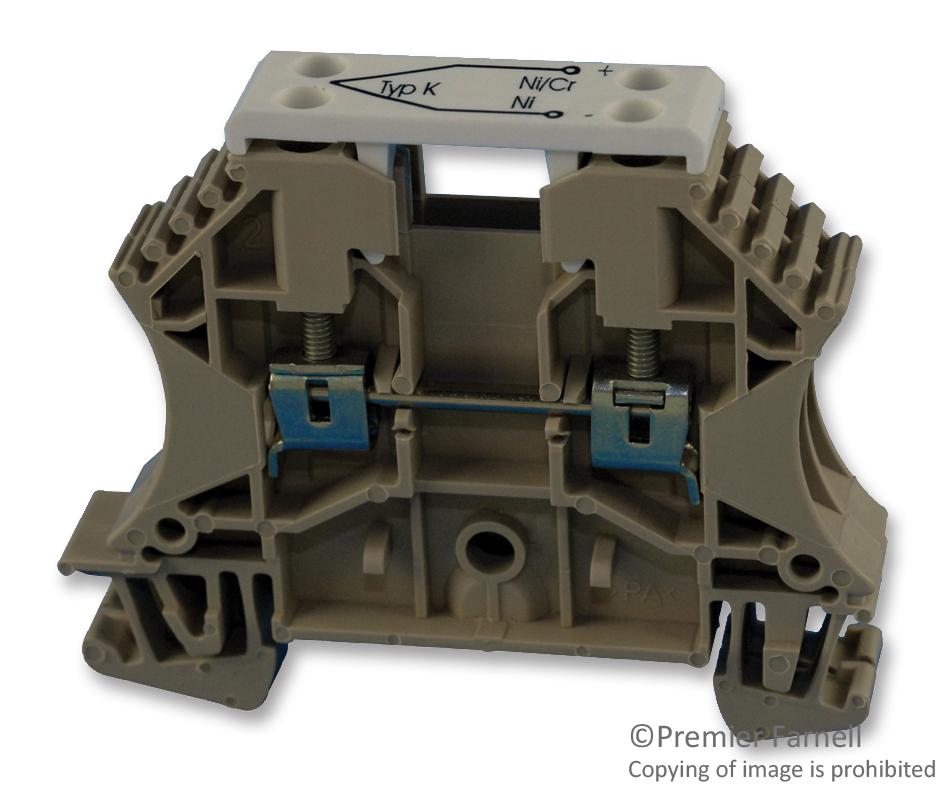

WEIDMULLER 1024100000 Feed-through terminal
The 1024100000 is a high-quality feed-through terminal block designed for thermocouple connections, featuring a screw connection, high durability, and easy installation. Made with hardened steel for mechanical strength and tinned copper for optimal conductivity, it supports wire sizes from 26 AWG to 12 AWG and cross-sections up to 2.5 mm². The terminal is suitable for TS 35 rail mounting with a snap-on design, capable of withstanding temperatures up to 120°C, and is halogen and phosphorous free, ensuring safety and reliability in industrial environments. It complies with UL94V-0 flammability standards, provides maintenance-free contacts, and features high contact force for secure connections, making it ideal for efficient, time-saving wiring in control and automation systems.
WEIDMULLER 1024100000 Feed-through terminal Specifications:
- Rated cross-section: 2.5 mm²
- Wire connection: Screw connection, M2.5 clamping screw
- Wire sizes supported: 26 AWG to 12 AWG
- Stripping length: 10 mm
- Dimensions: Width 10.2 mm, Height 60 mm, Depth 50 mm, including DIN rail 50.5 mm
- Material: Hardened steel, tinned copper
- Color: Dark beige
- Temperature range: -50°C to 120°C
- Flammability rating: UL 94V-0
- Mounting: TS 35 rail, snap-on mechanism
- Electrical: High contact force, maintenance-free contacts
- Protection: Ensures electrical safety even when cross-connected
Buy the Weidmueller Series W-Series Feed-through Terminal: 1024100000
Purchase the Weidmueller 1024100000 feed-through terminal online today for reliable thermocouple wiring in industrial automation. Designed with high-quality materials including hardened steel and tinned copper, it features a screw connection for secure wiring, supports wire sizes from 26 AWG to 12 AWG, and handles cross-sections up to 2.5 mm². Easy to install with a snap-on TS 35 rail mount, it offers high contact force and maintenance-free operation. Certified to UL94V-0, it ensures safety in demanding environments, providing quick, secure, and durable connections for control panels and instrumentation setups.
Get Weidmueller 1024100000 today—built for precise connections and long-lasting durability.
