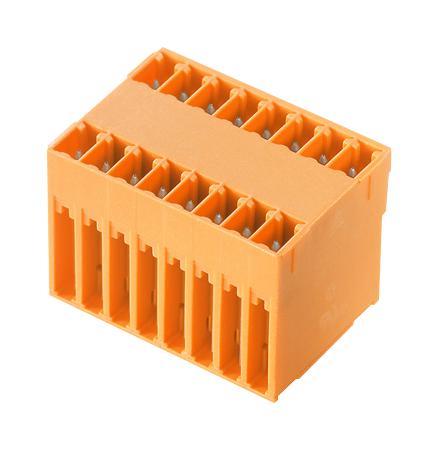

WEIDMULLER 1029980000 Signal Connector
This two-tier PCB connector allows for efficient use of space by enabling two interfaces on a single surface with a simple assembly process. Designed for wave soldering, it features a 3.81mm pitch, 14 poles, and 180° outlet direction, with access flush to the front board. Made from orange flame-retardant plastic with tinned copper alloy contacts, it offers high reliability, easy labeling, and multiple plugging cycles. Suitable for industrial applications requiring robust, space-saving board-to-wire connections.
WEIDMULLER 1029980000 Signal Connector Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of poles: 14
- Solder pin length: 3.2 mm (+0.02 / -0.02 mm)
- Solder pin diameter: 1.0 mm octagonal, with tolerance 0/-0.03 mm
- Solder eyelet hole diameter: 1.2 mm (+0.1 mm)
- Material: PA GF orange insulating plastic
- Contact material: Copper alloy, tinned surface
- Operating temperature: -50°C to 120°C
- Rated voltage: 300 V (UL, IEC), 160 V (CSA)
- Rated current: 17.5 A (IEC), 10 A (UL, CSA)
- UL flammability rating: V-0
- Volume resistance: >10^6 Ω
- Protection class: Touch-safe, IP20
- Plugging cycles: 25
- Dimensions: Length 22.86 mm (0.9 inch), height and width based on pitch and pole count
- Weight: 10.315 g
- Temperature range, storage and operation: -50°C to 120°C
- Conforms to IPC standards, IEC 60664-1, IEC 61984
- Approvals: UL, cURus, RoHS
